Removal and Replacement Procedures
Maintenance and Service Guide 5–17
3. Disconnect the auxiliary and main 1 antenna cables from
the Mini PCI communications card.
✎
Make note of which wireless antenna cable is attached to
which antenna clip on the Mini PCI communications card
before disconnecting the cables.
4. Spread the retaining tabs 2 on each side of the Mini PCI
socket to release the Mini PCI card. (The right edge of the
card rises away from the notebook.)
5. Remove the wireless communications card by pulling the
board away from the socket at a 45-degree angle 3.
✎
Note that the Mini PCI communications card is slotted 4 to
prevent incorrect installation.

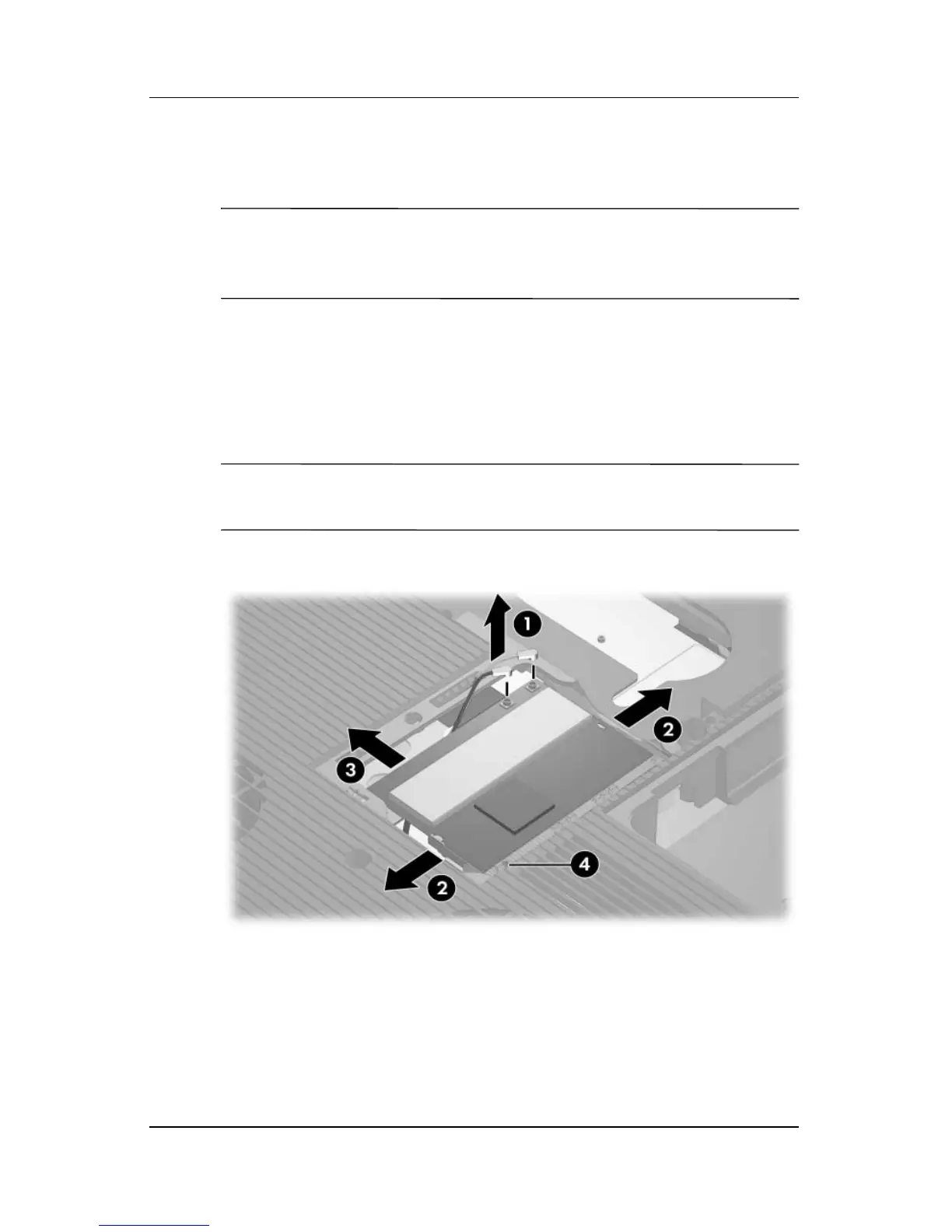

Removing a Mini PCI Communications Card
Reverse the above procedure to install a Mini PCI
communications card.
