Hinge Cover Panel
The hinge cover panel is located above the stand. You must remove it to remove the drive access
panel and memory access panel.

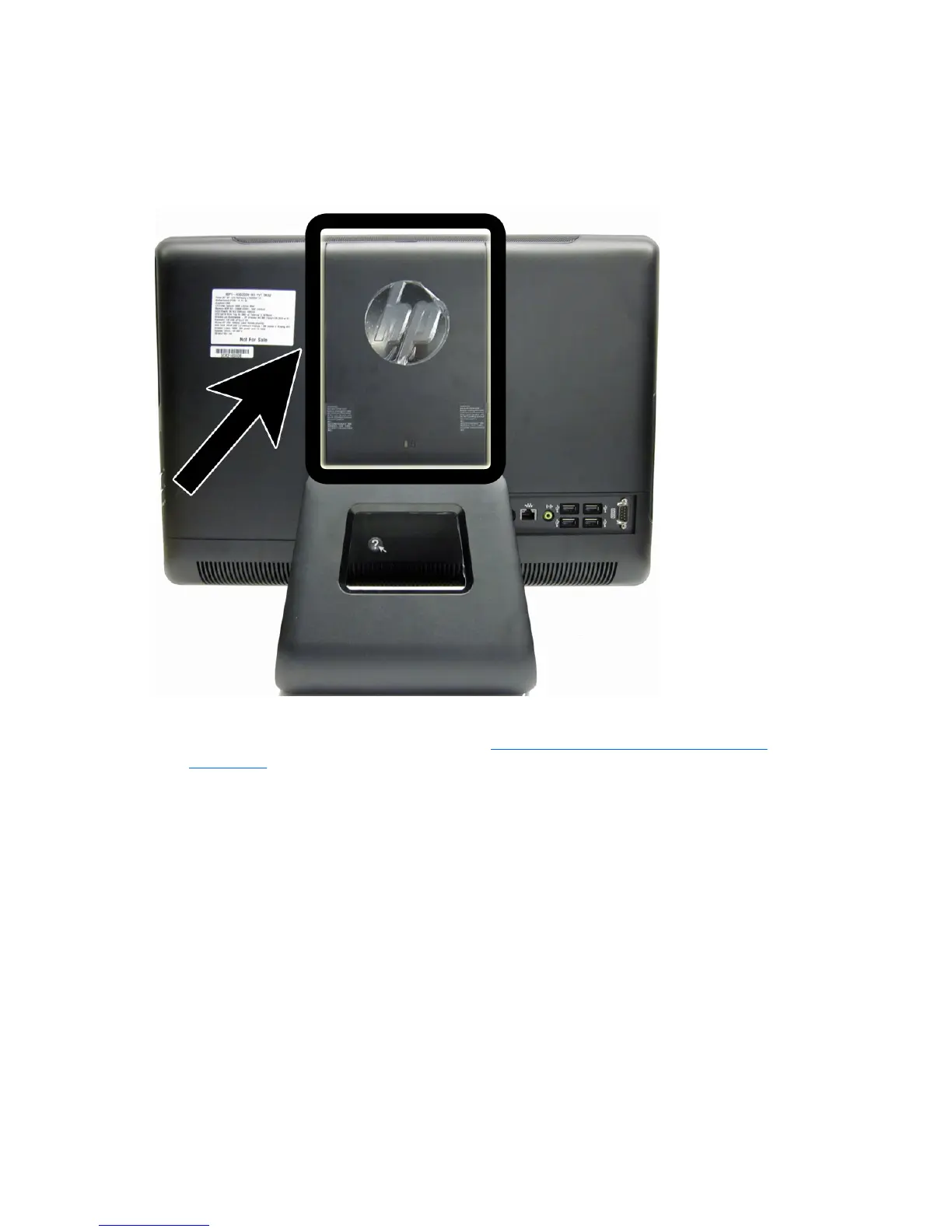

Figure 6-1 Hinge cover panel location
To remove the hinge cover panel:
1. Prepare the computer for disassembly (see
Preparing to Disassemble the Computer
on page 33).
34 Chapter 6 Removal and Replacement Procedures All-in One (AIO) Chassis
