1-4 Product Features
Compaq Confidential - Need to Know Required
Writer: Beth Zanca Part Number: 190709-001 File Name: ch1.doc
Last Saved On: 04/12/00 1:01 PM Last Saved By: Lydia Sanchez

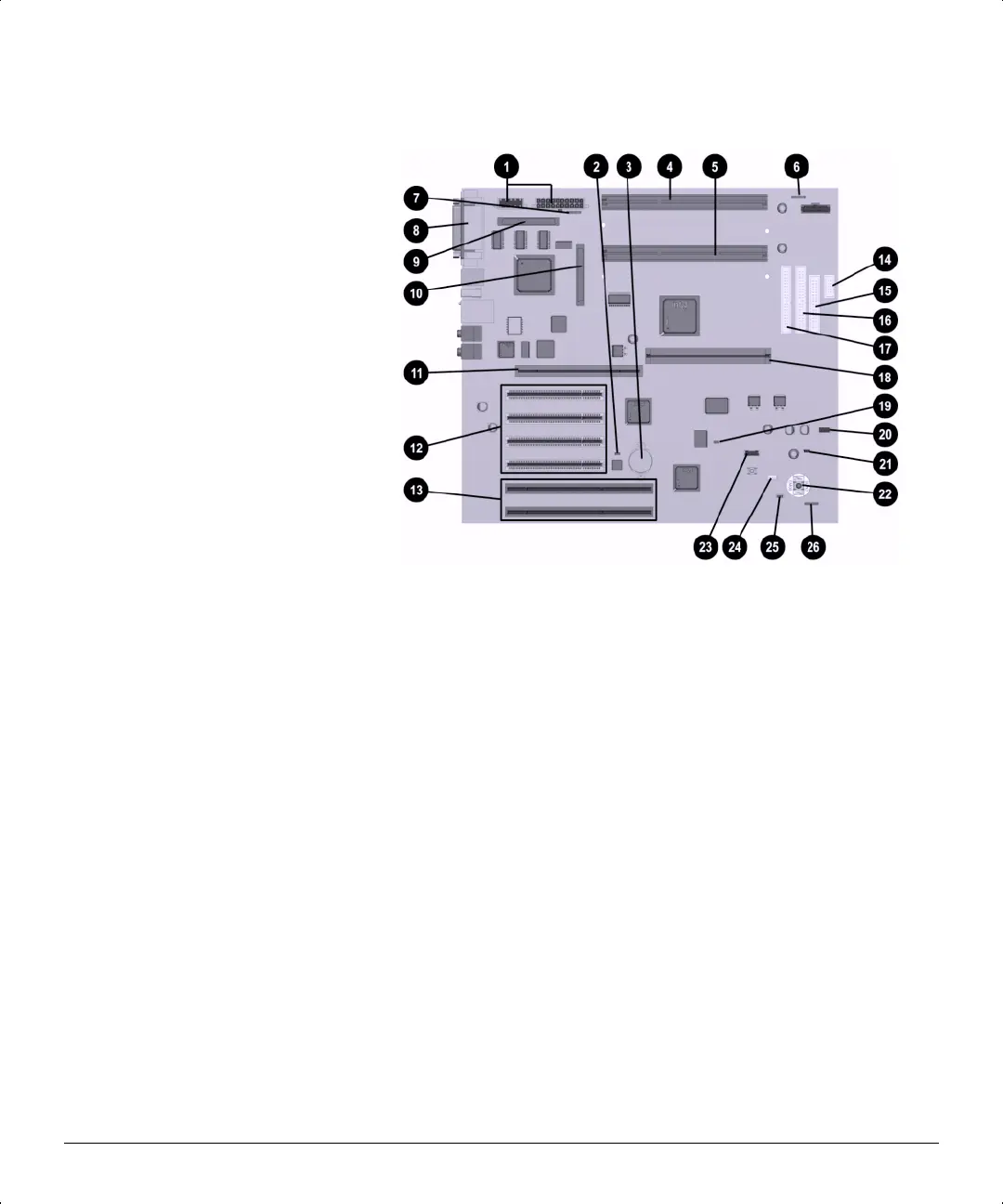

System Board Components
System board components
1 Power connectors ρ Power switch and LED connector
2 Power-on password (P49) enable jumper τ Diskette drive connector
3 Battery ψ Secondary Ultra ATA (IDE) connector
4 Primary processor slot υ Primary Ultra ATA (IDE) connector
5 Secondary processor slot ι Memory board connector
6 Processor cage fan connector ο SCSI option card and LED connector
7 Back processor fan connector π CD audio connector
8 External Ultra3 SCSI connector α Speaker connector
9 Ultra3 SCSI connector (Channel B) σ SW50 CMOS pushbutton switch
− Ultra3 SCSI connector (Channel A) δ Alert on LAN connector
θ AGP expansion slot φ Wake on LAN connector
ω PCI expansion slots 1-4 γ Hood sensor connector
ε PCI expansion slots 5 and 6 η Chassis fan connector
