NOTE: If you replace a motherboard with integral P410i card, or a P411 card, you must add
the RAID 6 license for the card, as described in the relevant sections below.

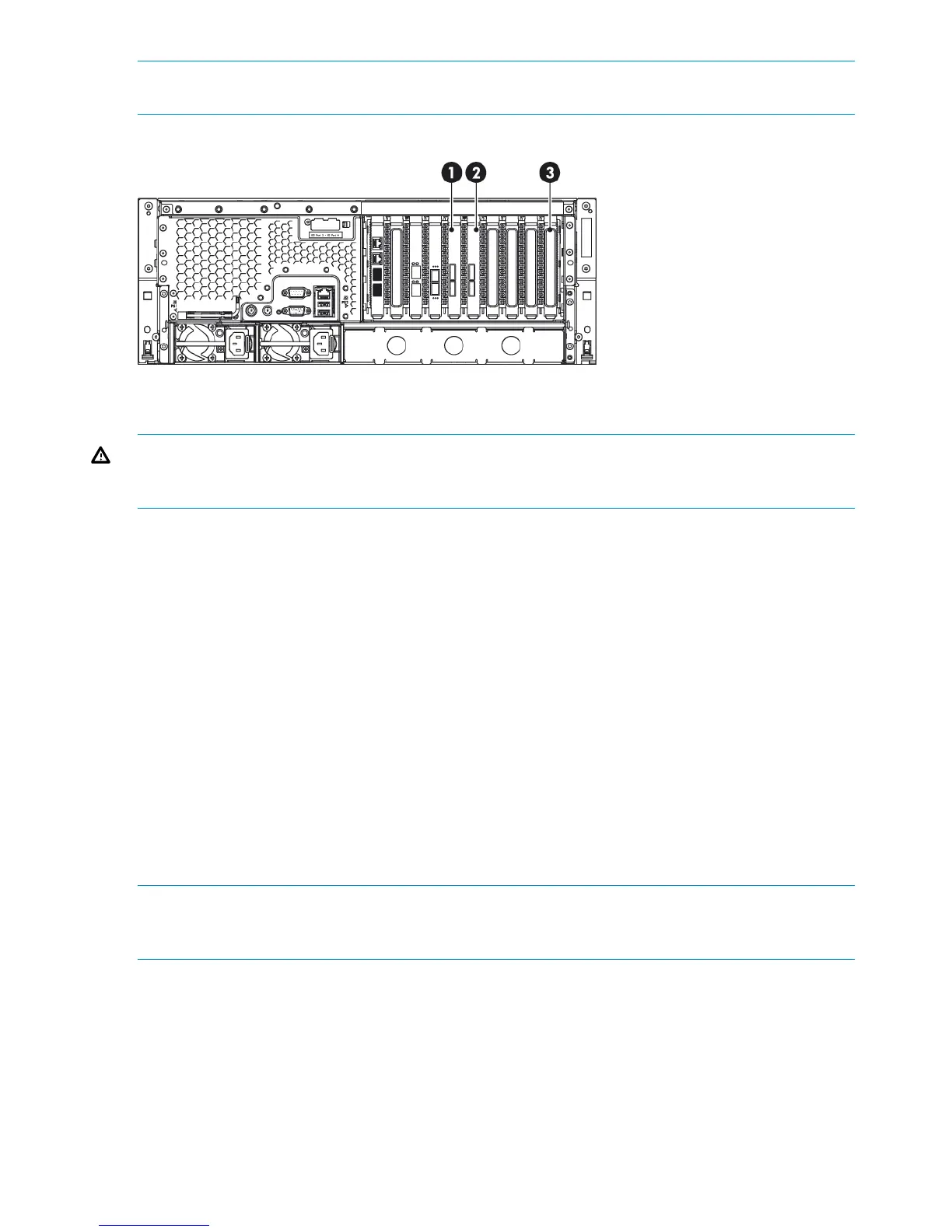

Figure 26 HP D2D4312, location of the P411 controller and HP SAS expander card
3 HP SAS expander card1 and 2 P411 RAID controllers
WARNING! To reduce the risk of personal injury or damage to the equipment, consult the safety
information and user documentation provided with the server and RAID controllers before attempting
the installation.
Part numbers
The P410i card is integral to the motherboard, which is the standard motherboard.
The required part for the P812 card is: HP Smart Array P812/1024 MB with FBWC Controller:
487204-B21
The required part for the P411 card is: HP Smart Array P411/512 MB with BBWC Controller:
462832-B21
Identifying a RAID contoller failure
RAID card failures are reported in the Log and in email alerts, if you have set them up. For example:
cache module failure.
You can identify which card has failed by looking at the Storage-RAID pages of the Web
Management Interface. The P410i card is identified as “internal”; the P812 or P411 cards are
identified by their slot number in the Controllers section. Any issues with logical units on this page
also indicate a problem.
If the HP SAS expander card is at fault, disks will not be visible on the Storage-Shelves tab
NOTE: If RAID fails and the HP D2D Backup System is still functioning, you can also get
information, including license keys, by generating a Support ticket (from the Administration-Support
web page).
Before replacing a RAID controller — a note about licenses
The Smart Array Advanced Pack (SAAP) is required to enable RAID 6 support. You must reinstate
the SAAP license, if you replace the motherboard/P410i on the HP D2D4324 or HP D2D4312
products or if you replace one of the P411 cards on an HP D2D4312 product. (You do not need
to reinstate the license, if you replace one of the P812 cards on an HP D2D4324 product.)
If you do not reinstate the license, the system will experience one of the following symptoms :
30 The HP SmartArray P410i and P812/P411 RAID controllers and HP SAS expander card (HP D2D4324 and 4312)
