◦ 512 MB memory: 462975-001
◦ BBWC: 462976-001
• The system has an HP StorageWorks Dual Channel 4Gb PCIe Fibre Channel Host Bus Adapter,
part number AE312A, which is installed in a full-height slot

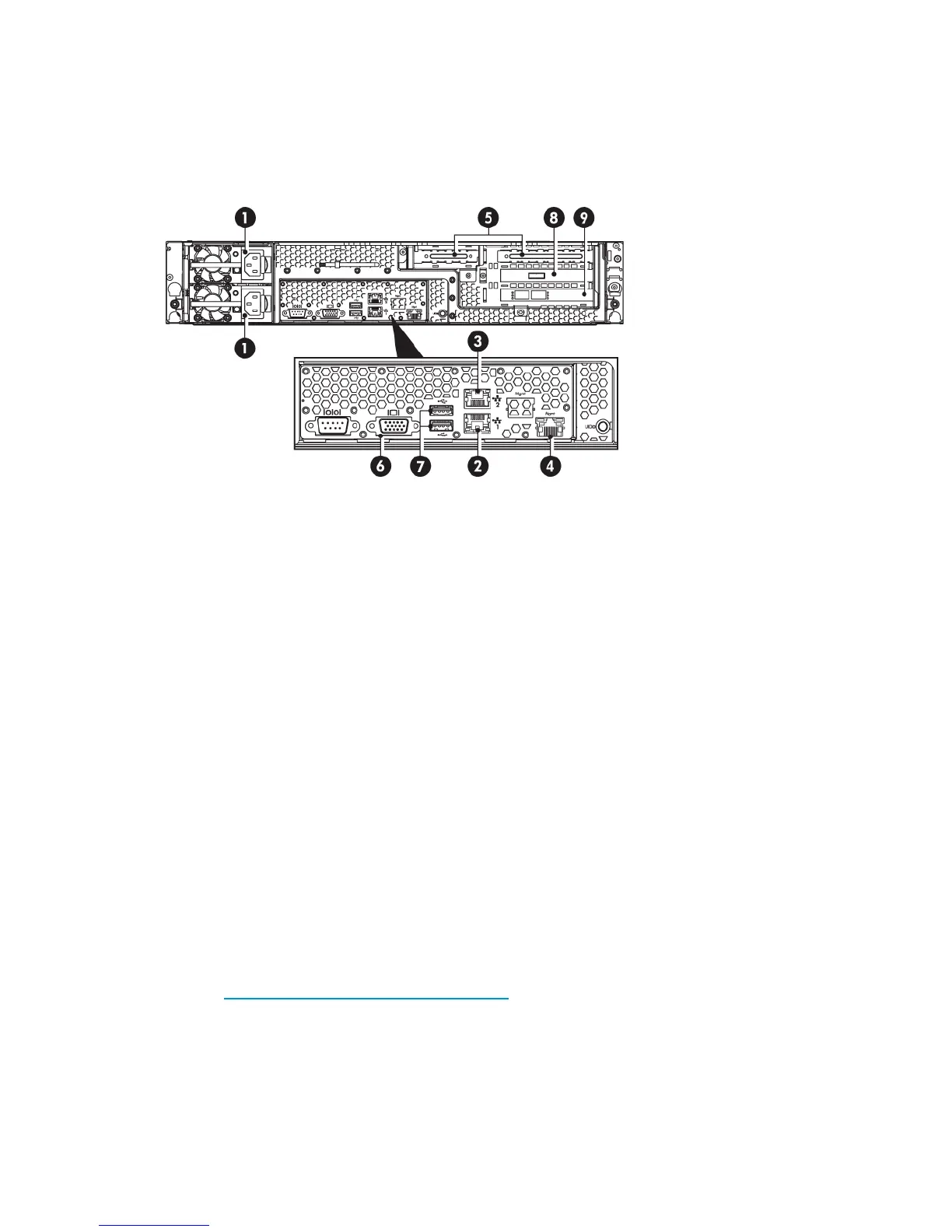

Figure 3 Rear view of the HP D2D4106/4112 G2
6. VGA port for system console monitor1. Power supply cable sockets (two)
7. USB ports for system console keyboard and mouse2. LAN port 1 (always used for data connection)
8. RAID controller3. LAN port 2
9. Fibre Channel card (HP D2D4106fc/4112)4. Management LAN port (Do not use for data)
5. PCI-e slots
Using the ProLiant Guide with HP D2D2502/2504 G2 models
When using the HP ProLiant DL160se G6 guide, be aware of the following HP D2D-specific
information:
• The CPU is the Intel Xeon E5520, part number 506013-001. There is one per system.
• The HP D2D has four removable hard disks.
• There is no optical media storage.
• HP D2D2502 Backup System: The configuration of the system memory is 24 GB (3 x 8 GB
DIMMs) for the HP D2D2502 Backup System.
HP D2D2504 Backup System: The configuration of the system memory is 32 GB (4 x 8 GB
DIMMs).
The part number for each 8 GB DIMM is 500662-B21.
• The HP D2D is supplied with an HP Smart Array P212 controller (with 512 MB and BBWC)
pre-installed in one of the full-height PCI-e slots. For more information about this card, search
on http://www.hp.com/support/manuals. Part numbers are as follows:
◦ HP Smart Array P212/Zero Memory Controller: 462828-B21
◦ 512MB BBWC -Cache and BBWC: 462967-B21
◦ 512 MB memory: 462975-001
◦ BBWC: 462976-001
HP D2D and HP ProLiant 9
