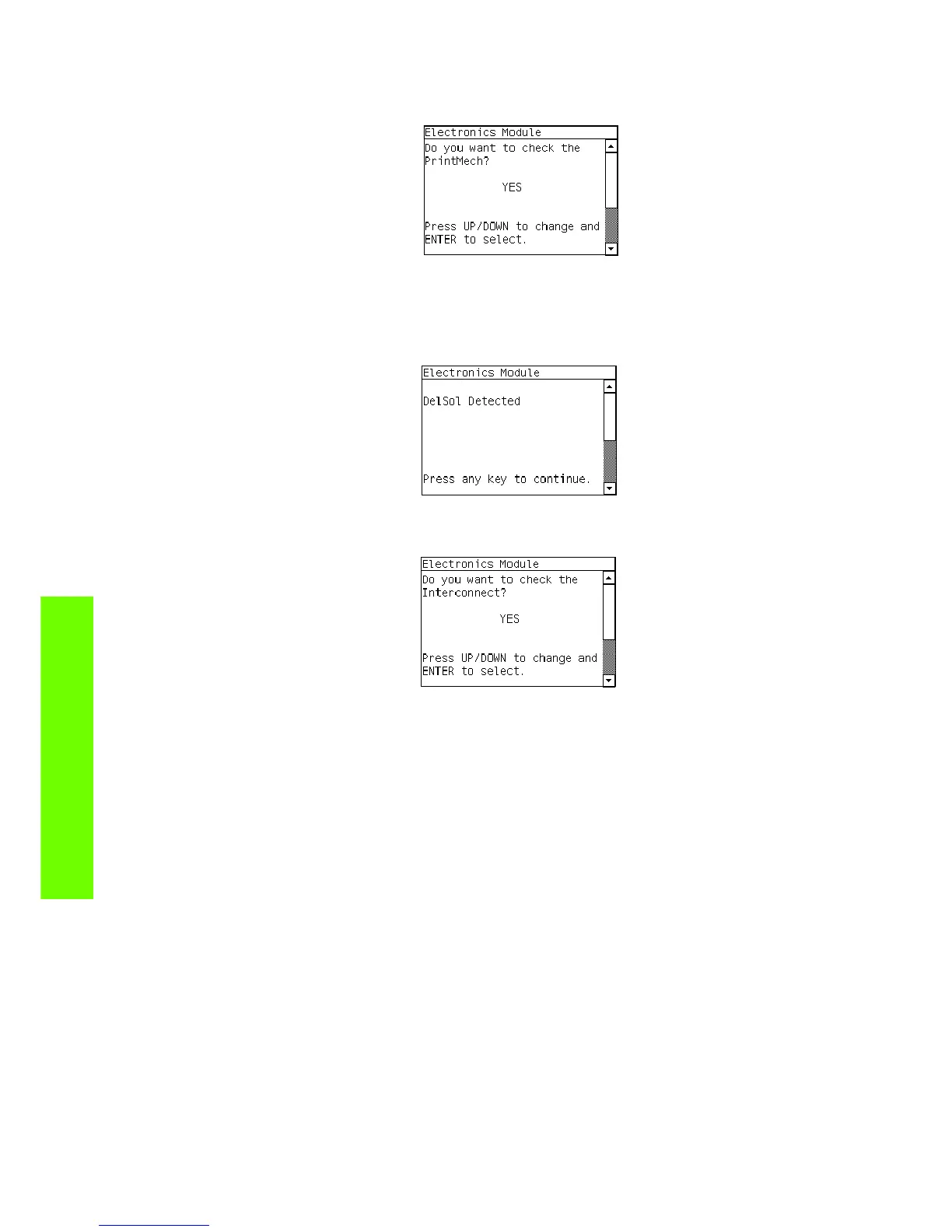

13 . A message will display on the Front Panel asking whether you would like to check the PrintMech.
Select Yes and press OK to confirm your selection.
14 . The Printer will check various electrical subsystem, if there is an error at any time, use the information
on chapter 3 ⇒ page 73, to solve the issue.
15. A message will display on the Front Panel stating that the delSol has been detected and asking
whether you would like to Continue. Press any key to continue:
16. A message will display on the Front Panel asking whether you would like to check the Interconnect.
Select Yes and press OK to confirm your selection:
17. The Printer will check the Interconnect PCA and the following messages will be displayed on the
Front Panel:
• Starting CDS.
If there is a failure at this point, the Front Panel will display system error code 79:03 ⇒ page 113.
• Getting unit config.
If the current Part Number is not in the correct 6 character format, the Front Panel will display a fail
message. In this case, re-enter in to the Service Tests submenu and use the diagnostic “14.2 Error
71:19 Recovery” to set the correct Serial Number (refer to page 132).
• Starting Tests GPIO.
If there is a failure at this point, the Front Panel will display system error code 01.0:10 ⇒ page 78.
• Checking GPIO channels.
