While the Carriage is moving the Front Panel shows the actual position and the direction of
movement and prompts you to press ENTER when done.
12. The Front Panel shows the actual right offset value.
13 . The calibration process continues and front panel shows the following messages as the new nominal
offset value is read and saved to NVM:
• Reading Nominal Offset.
• New Nominal Offset is [ActualValue].
• Saving to nvm.
• Saved.
14 . Once the calibration is completed, OK will be displayed on the Front Panel.
15. Replace the Right Hand Cover (page 319).
5.6.3 Open/Close SOL
Description
The purpose of this Service Utility is to open and close the Color Sensor shutter to verify correct operation.
Procedure
1. Go to Service Menu >5. Service Calibration Menu>5.6 Carriage Menu>5.6.3 Open/Close SOL.

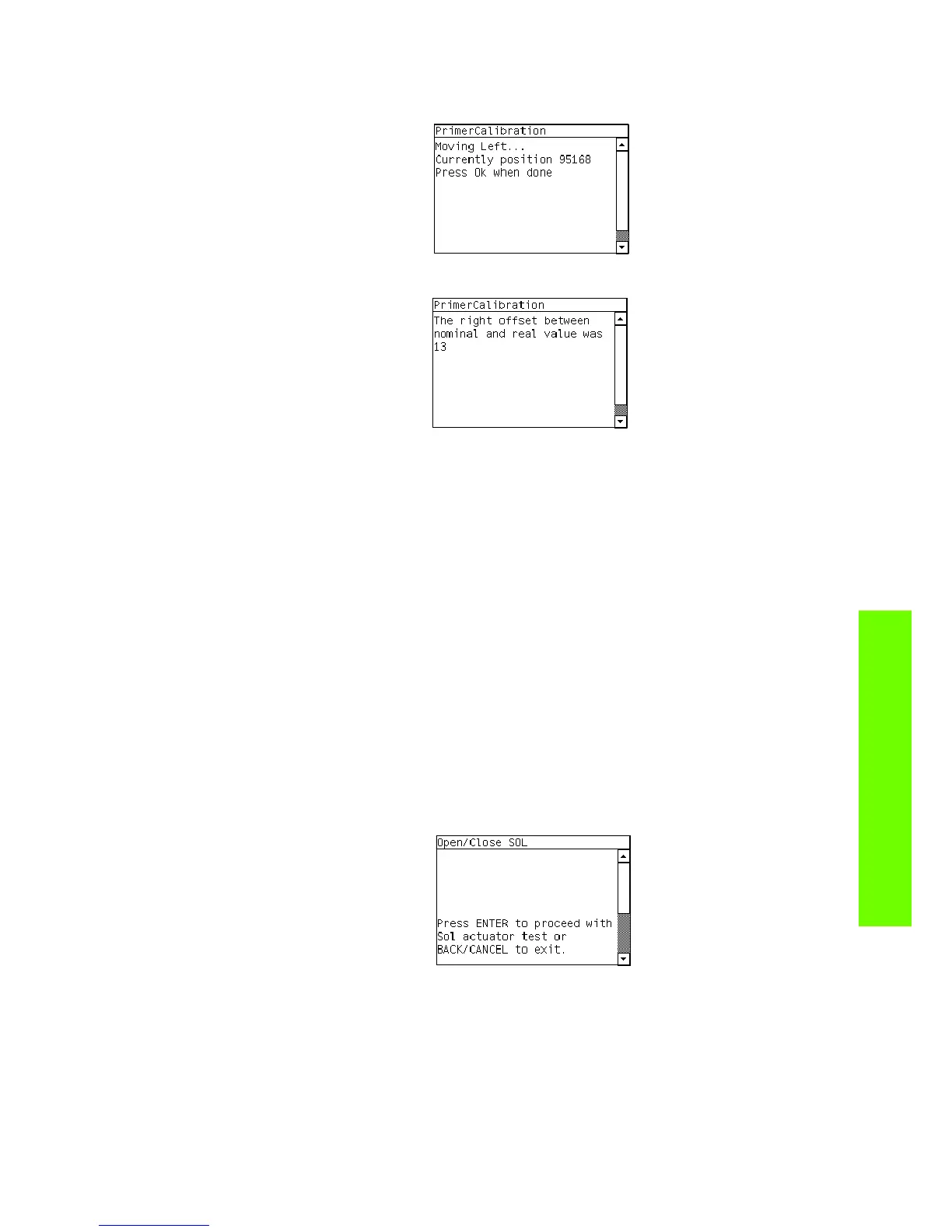

2. When the following message displays on the Front Panel, select OK.
3. The Printer will perform the Open/Close SOL test and the Front Panel will display the following
messages:
• Performing SOL Full Calibration.
• Checking ColorSensor Status.
• Reading Lab values with SOL Shutter Closed.
