344 Chapter 8 Removal & Installation
Removal & Installation

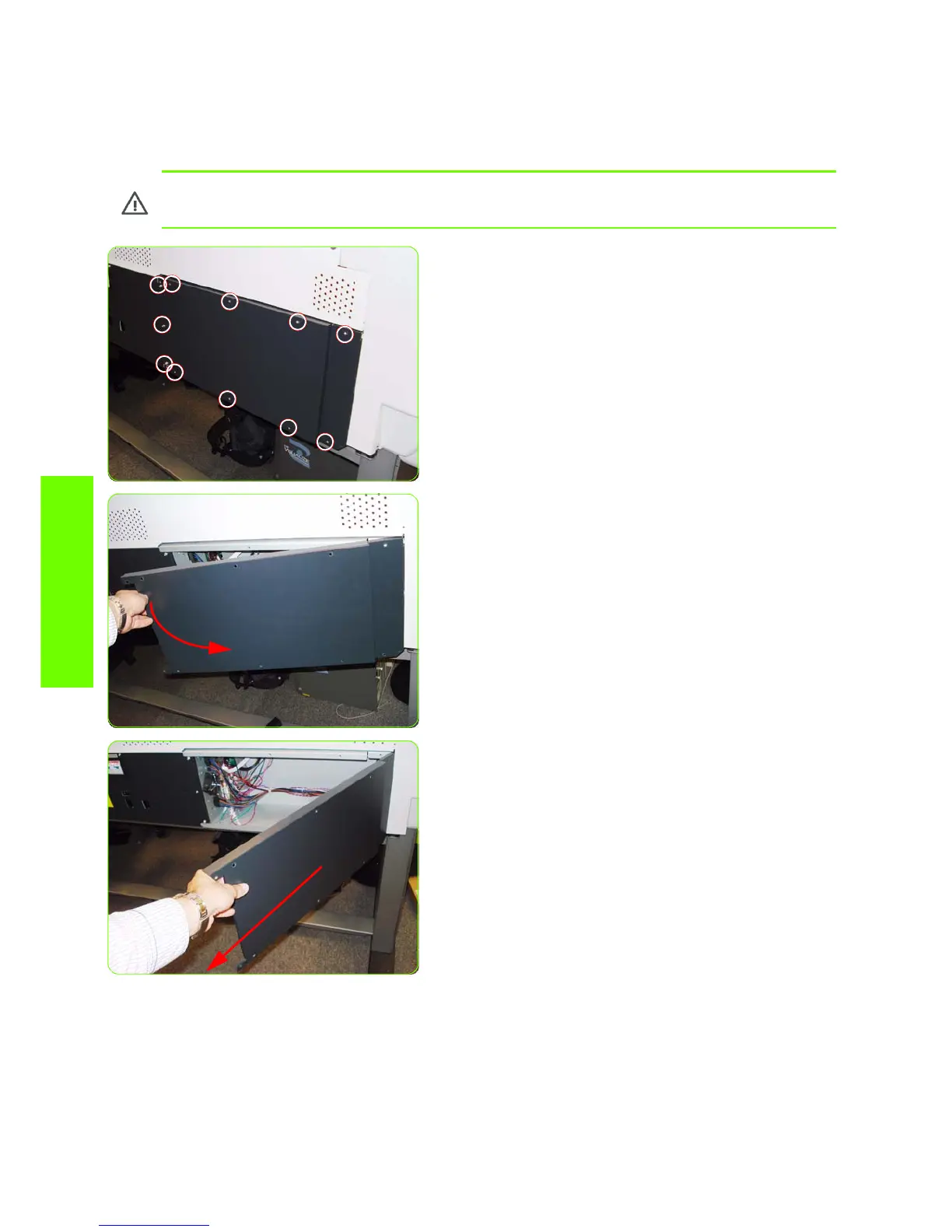

Electronics Module Extension (60-inch only)
Removal
1. Remove ten T-20 screws (Type B) from the Electronics
Module Extension.
2. Rotate the Electronics Module Extension approximately
90 degrees counter-clockwise.
3. Remove the Electronics Module Extension from the
Printer.
WARNING!: Switch off the printer and remove the power cable.
To Next Page
