HP Designjet L25500 Printer series

32 Printer systems
Printer systems

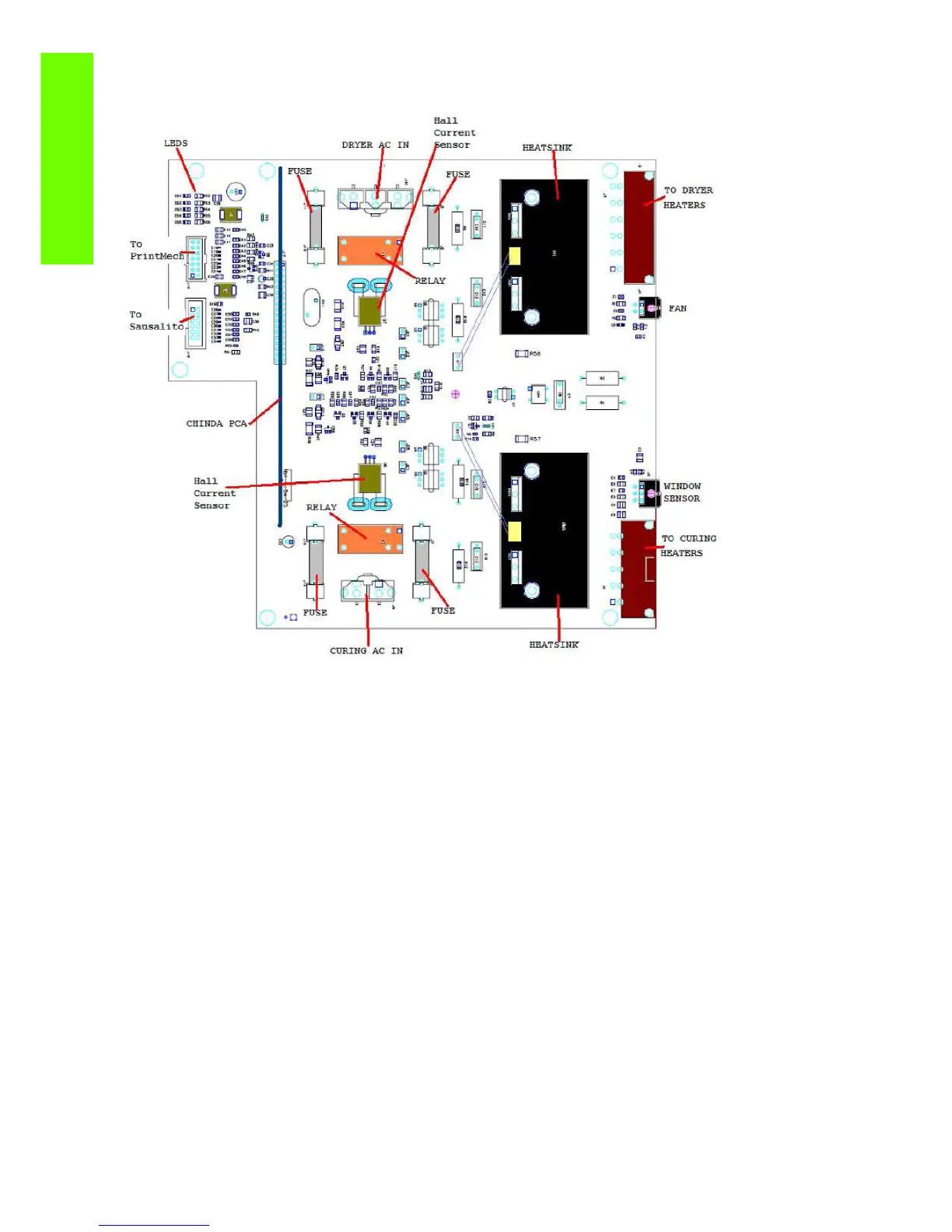

Heating and Curing PCA and connections
Related tests, utilities, and calibrations
• Heating and Curing service tests ⇒Page 167.
• Heating and Curing Temperature ⇒Page 195.
Service parts
• Front Covers ⇒ Page 264.
• Dyer and Curing Modules⇒ Page 280.
Removal and installation
• Heating Control Assembly ⇒ Page 465.
• Heating Control Assembly Fan (42 inch)⇒ Page 473.
• Dryer (IR) Heater Sensor⇒ Page 496.
• Dryer Heater Assembly ⇒ Page 498.
• Curing Temperature Sensor⇒ Page 503.
• Curing Fans ⇒ Page 503.
• Curing Heaters ⇒ Page 515.
• Curing Module ⇒ Page 525.
