HP Designjet L25500 Printer series

444 Chapter 8 Removal & Installation
Removal & Installation
Sausalito PCI PCA
Removal

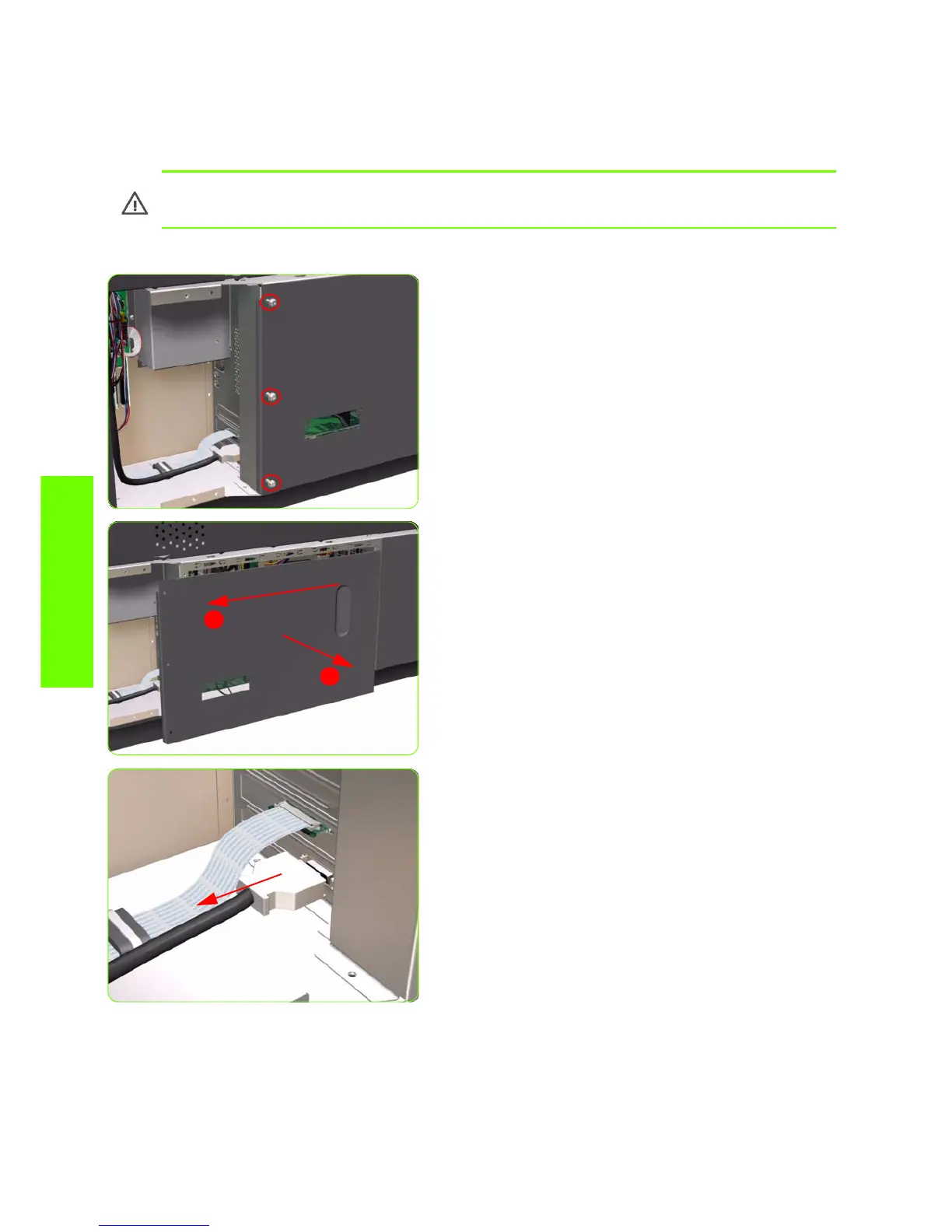

1. Remove the Right Connector Cover ⇒ See page 341 .
2. Remove three T-20 screws (Type A) that secure the
Main PCA cover.
3. Remove the Main PCA Cover from the Printer.
4. Disconnect the Trailing Cable from the Sausalito PCI
PCA.
WARNING!: Switch off the printer and remove the power cable.
1
2
