454 Chapter 8 Removal & Installation
Removal & Installation
PATA to SATA PCA
Removal

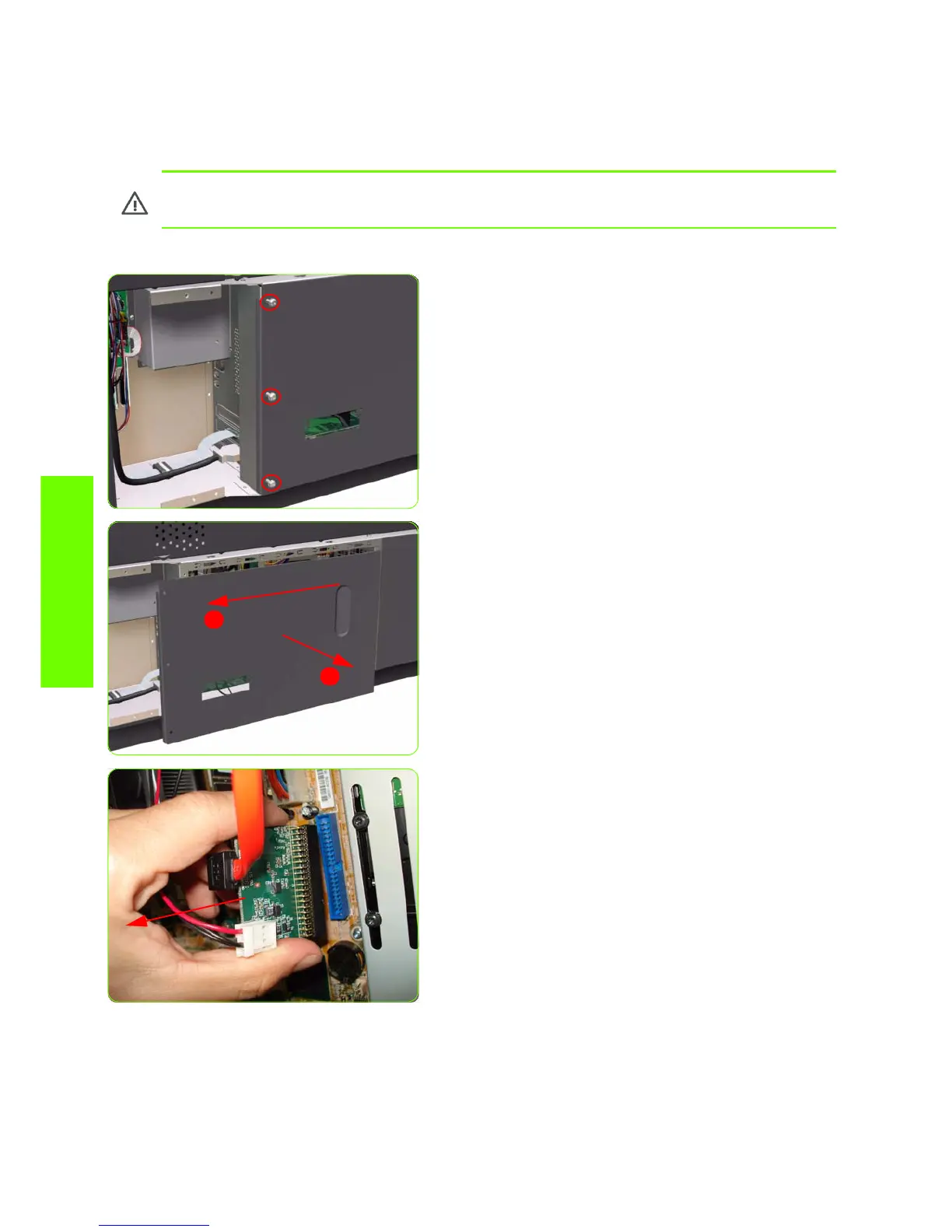

1. Remove the Right Connector Cover ⇒ See page 341 .
2. Remove three T-20 screws (Type A) that secure the
Main PCA cover.
3. Remove the Main PCA Cover from the Printer.
4. Disconnect the Pata to Sata PCA from the Main PCA.
WARNING!: Switch off the printer and remove the power cable.
1
2
