PATA to SATA PCA 455
Removal & Installation

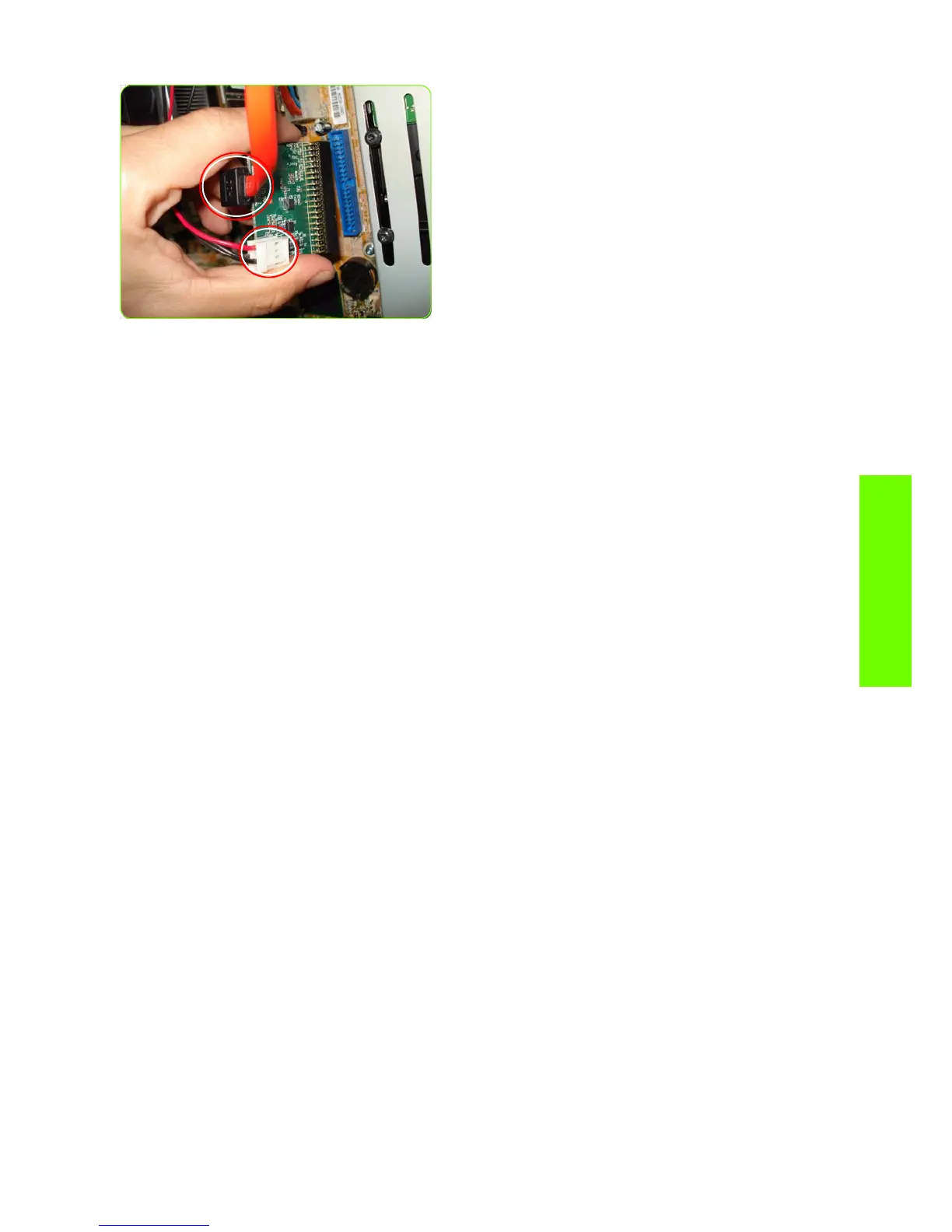

5. Disconnect the two connectors from the Pata to Sata.
Installation
When installing the new PATA to SATA, the orientation of the board is important, as it is possible to install
incorrectly:
• Ensure the board is inserted in the center of the receiving socket.
• Make sure the orientation of the connections are as shown as the part is installed.
