456 Chapter 8 Removal & Installation
Removal & Installation
Power Supply Unit (PSU)
Removal
1. Remove the Left Cover
⇒
See page 325
.
2. Remove the Right Connector Cover
⇒
See page 341
.
3. Remove:
• For the 42-inch model, the Left Connector Cover
⇒ See page 343.
• For the 60-inch model, the Electronics Module
Extension⇒ See page 344.

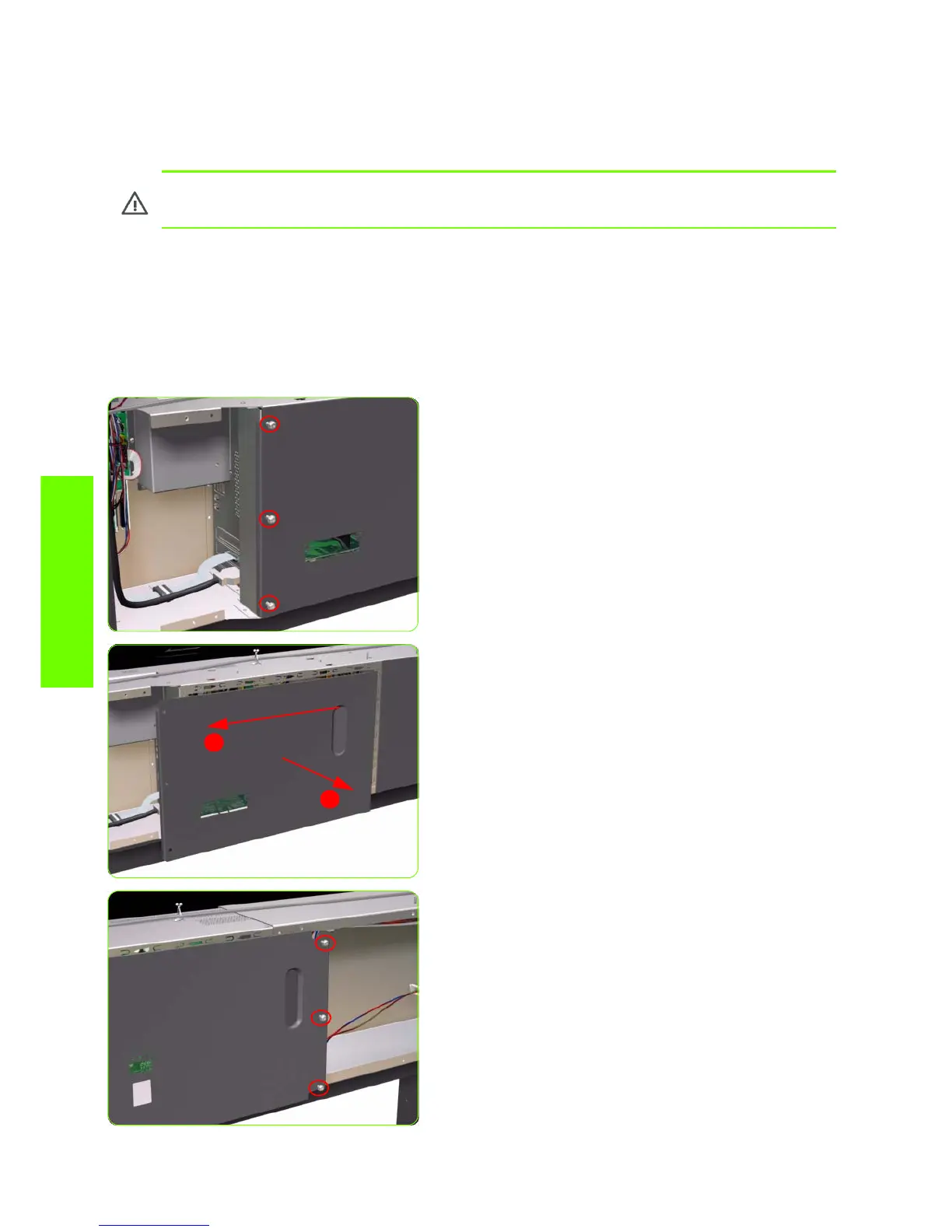

4. Remove three T-20 screws (Type A) that secure the
Main PCA cover.
5. Remove the Main PCA Cover from the Printer.
6. Remove three T-20 screws (Type A) that secure the
PSU cover.
WARNING!: Switch off the printer and remove the power cable.
