HP Designjet Z5200 - PostScript Printer - Page 121

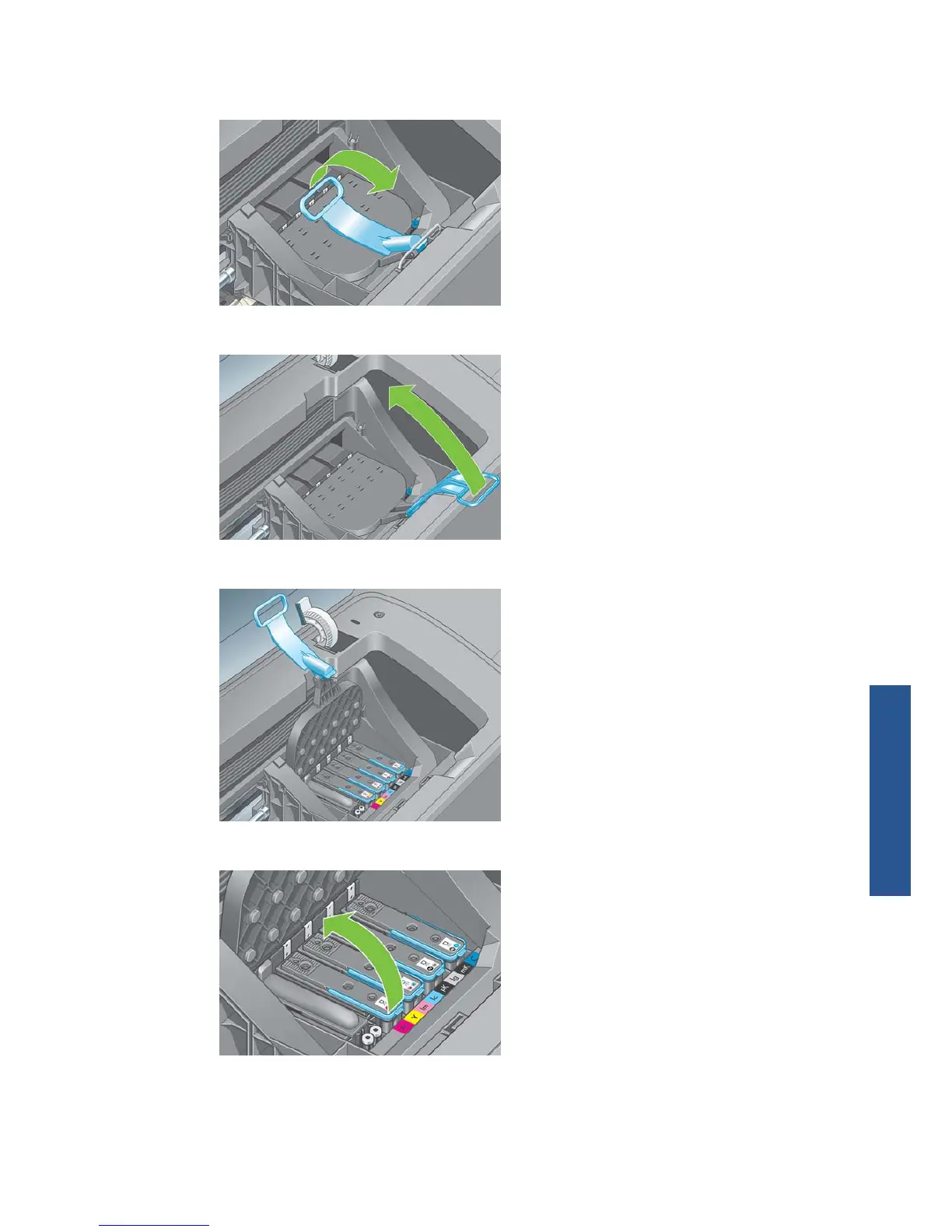

5. Pull the handle up and toward you to release the wire loop.
6. Push the handle back to raise the carriage lid.
7. This gives you access to the printheads.
8. To remove a printhead, lift up the blue handle.
ENWW Remove a printhead 111
Ink and printheads
