5. Hard power switch
6. Power cord plug in
7. Paper feeder
The front panel
Your printer's front panel is located on the front of the printer, in the center. It has the following
important functions:
Assists you in troubleshooting issues
Is used to perform certain procedures, such as cutting and unloading paper
Displays helpful animations to guide you through procedures
Displays up-to-date information about the status of the printer, such as the ink cartridges, the
printheads, the paper and the print jobs
Displays warning and error messages, when appropriate, along with audio alerts to call attention
to a warning or message
Can be used to change the values of printer settings and thus change the operation of the
printer. However, settings in the front panel are overridden by settings in the printer drivers, see
Installing the software on page 9.

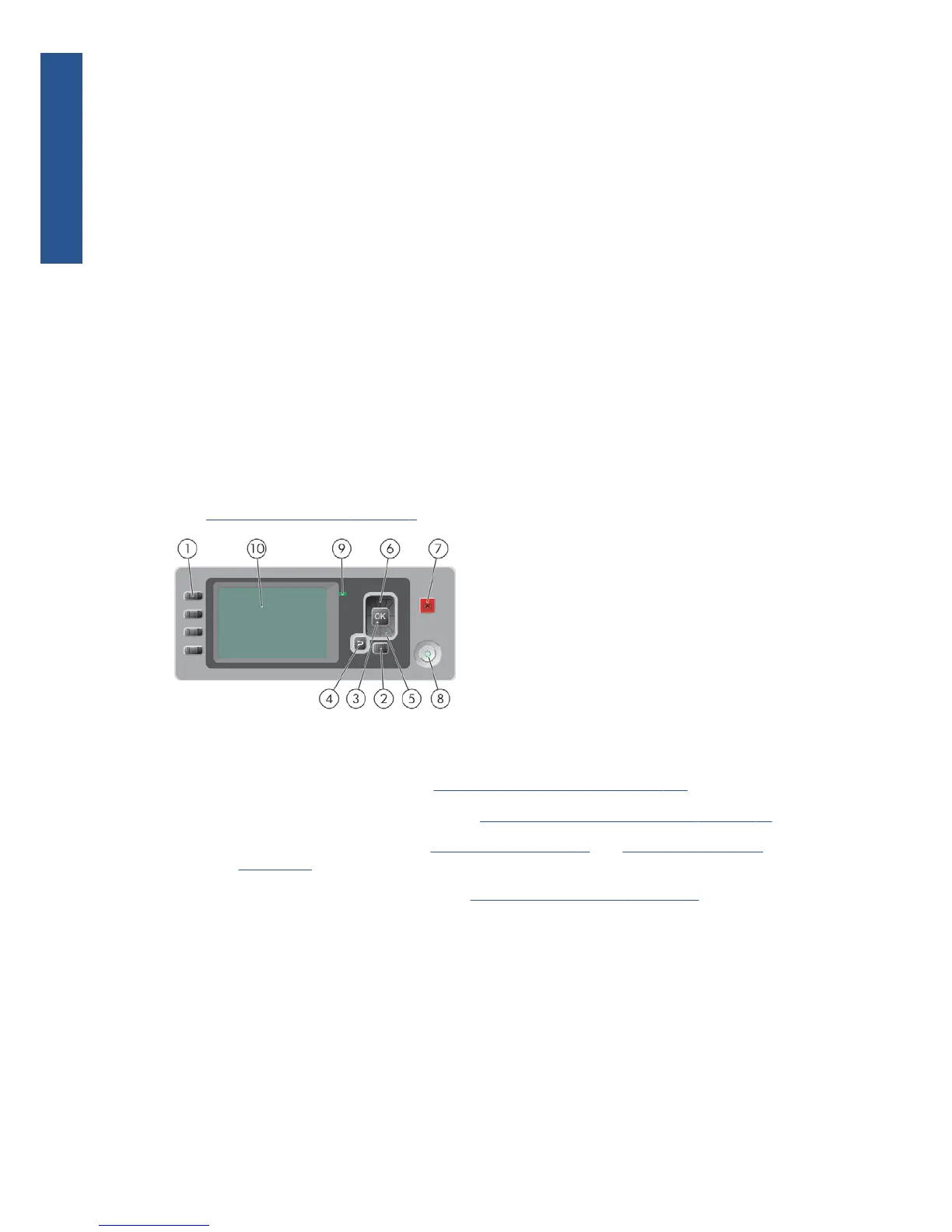

The front panel has the following components:
1. Direct access keys:
First key: View ink levels, see
Check ink cartridge status on page 106
Second key: View loaded paper, see
View information about the paper on page 36
Third key: Unload paper, see
Unload a roll on page 31 and Unload a single sheet
on page 35
Fourth key: Form feed and cut, see
Feed and cut the paper on page 42
2. Menu key - Press to return to the main menu of the front-panel display. If you are already on the
main menu it displays the status screen.
3. OK key - To confirm an action while in a procedure or interaction. To enter in a submenu in the
menu. To select a value when given an option.
4. Back key - To go to the previous step in a procedure or interaction. To go to the upper level, or
leave the option in the menu, or when given an option.
5. Down key - To go down in a menu or option, or to decrease a value, for example when
configuring the front-panel display contrast or the IP address.
6 Chapter 1 Introduction ENWW
Introduction
