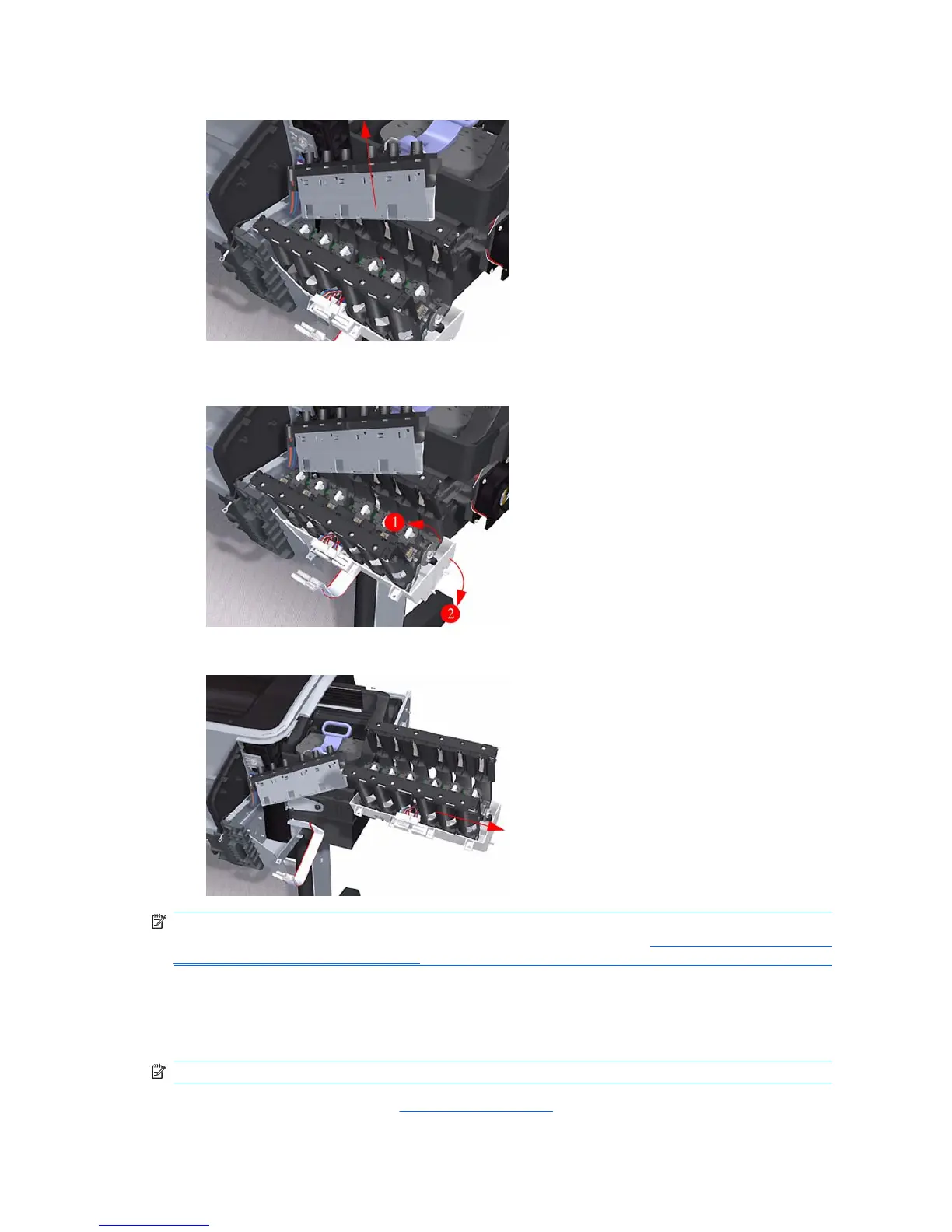

11. Carefully lift the Cartridge Tubes Connector out of the Right Ink Supply Station.
12. Carefully lift the Right Ink Supply Station enough so that you can rotate it clockwise to release the
front attachment from the printer.
13. Carefully lift the Right Ink Supply Station completely out of the printer.
NOTE: When you finish installing or replacing this component, you must perform the necessary
Service Calibrations. To find which calibrations you must perform, refer to
Service Calibration Guide to
Removal and Installation on page 170.
Left Ink Supply Station
Removal
NOTE: Switch off the printer and remove the power cable.
1. Remove the Left Cover (refer Left Cover on page 188).
284 Chapter 6 Removal and Installation ENWW
