HP DesignJet Z5200 series

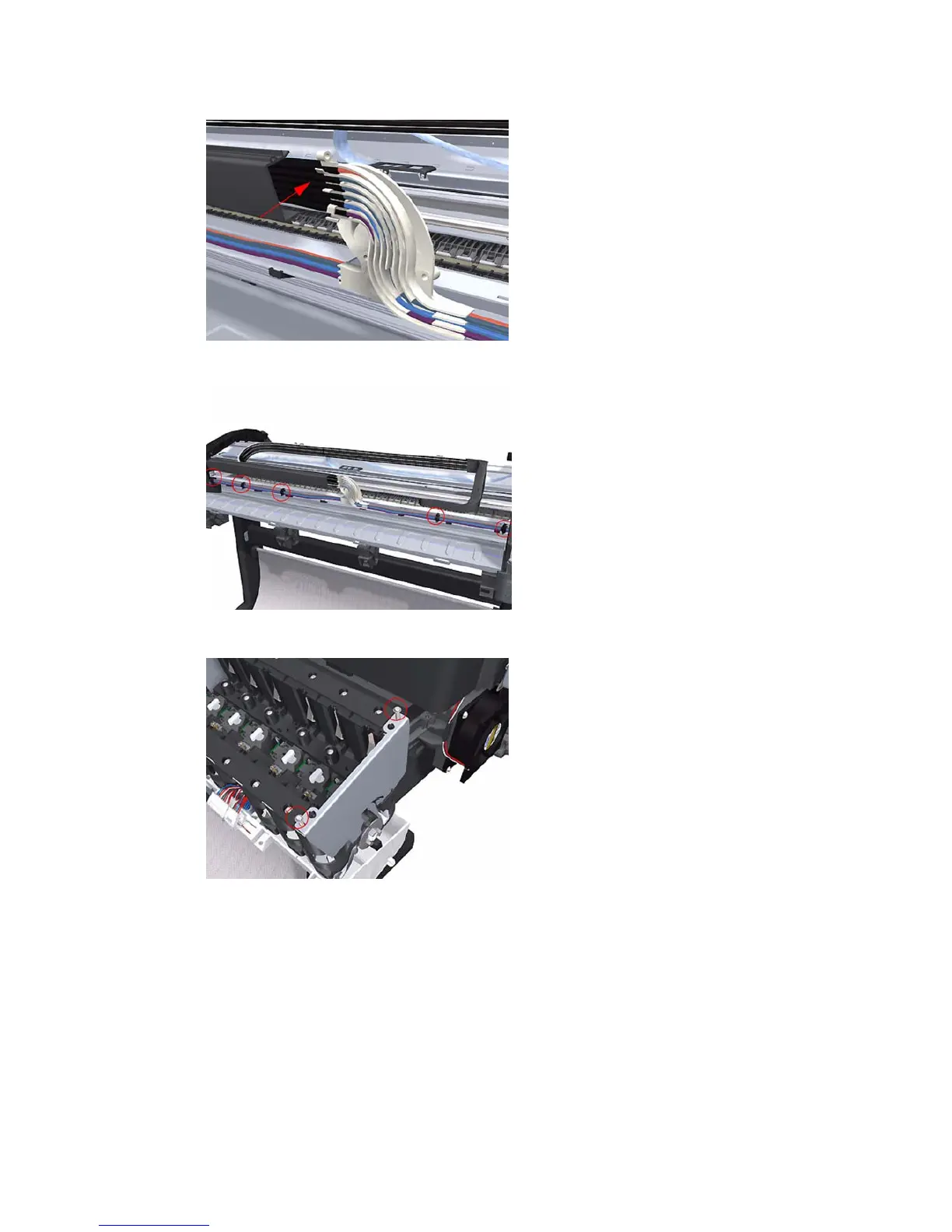

14. Gently move the Ink Supply Tubes from the printer.
15. Use a flat bladed screwdriver to release all the Ink Supply Tubes clamps from the printer.
16. Remove two T-10 screws that secure the right Side Plate of the Right Ink Supply Station.
292 Chapter 6 Removal and Installation ENWW
