Right Cover
Removal
NOTE: Switch off the printer and remove the power cable.

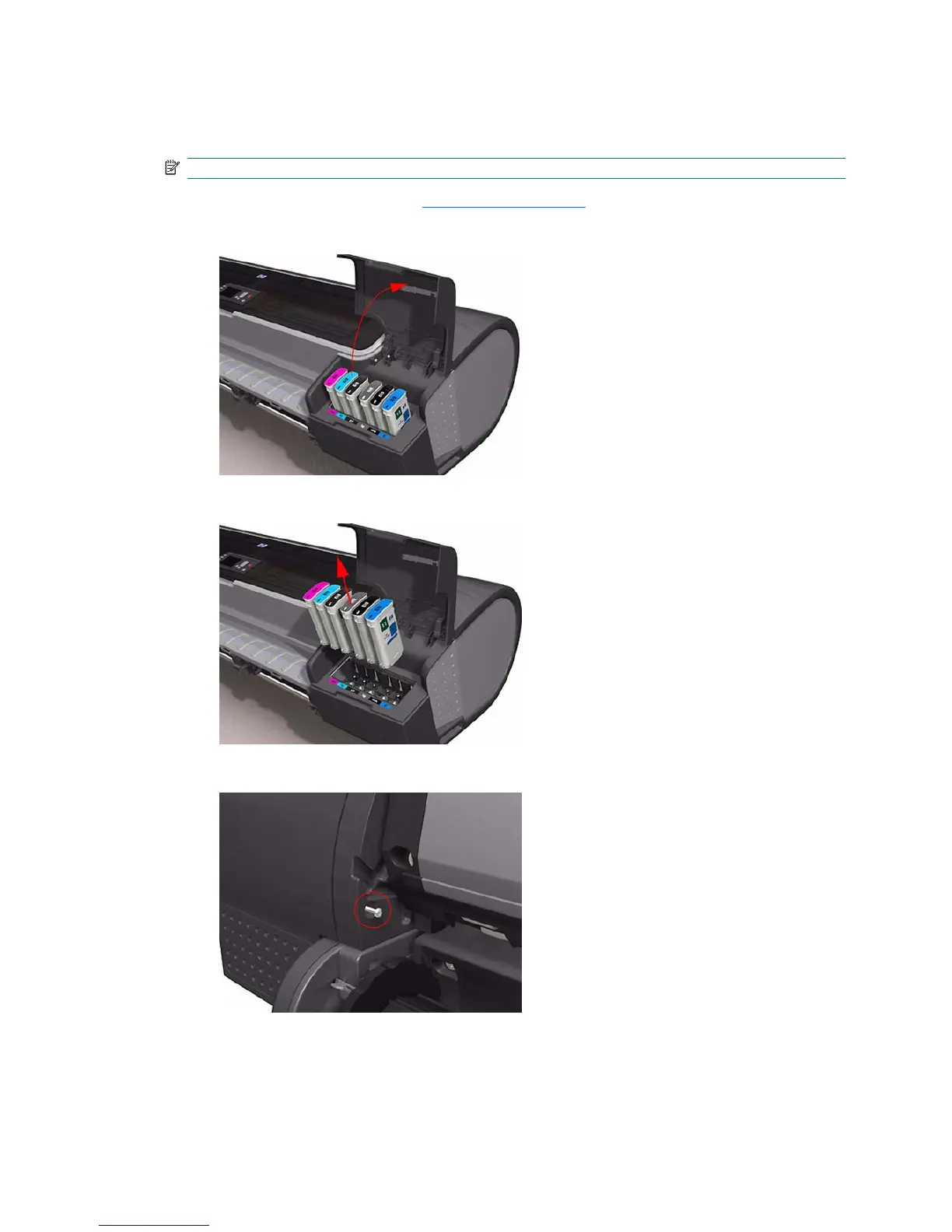

1. Remove the Front Cover (refer Front Cover on page 177).
2. Open the Right Ink Cartridge Door.
3. Remove the Ink Cartridges from the printer.
4. Remove one T-15 screw that secures the Right Cover to the printer (at the rear of the Printer).
ENWW Right Cover 185
