HP Designjet Z6100 Printer series - Page 317

Aerosol Fan and Filter 307
Removal & Installation
Aerosol Fan and Filter
Removal
1. Remove the Right Cover ⇒ See page 264 .
2. Remove the Rear Door:
• For the 42-inch model ⇒ See page 281.
• For the 60-inch model ⇒ See page 283.
3. Remove the Right Connector Cover ⇒ See page 281.
4. Remove the Service Station ⇒ See page 300

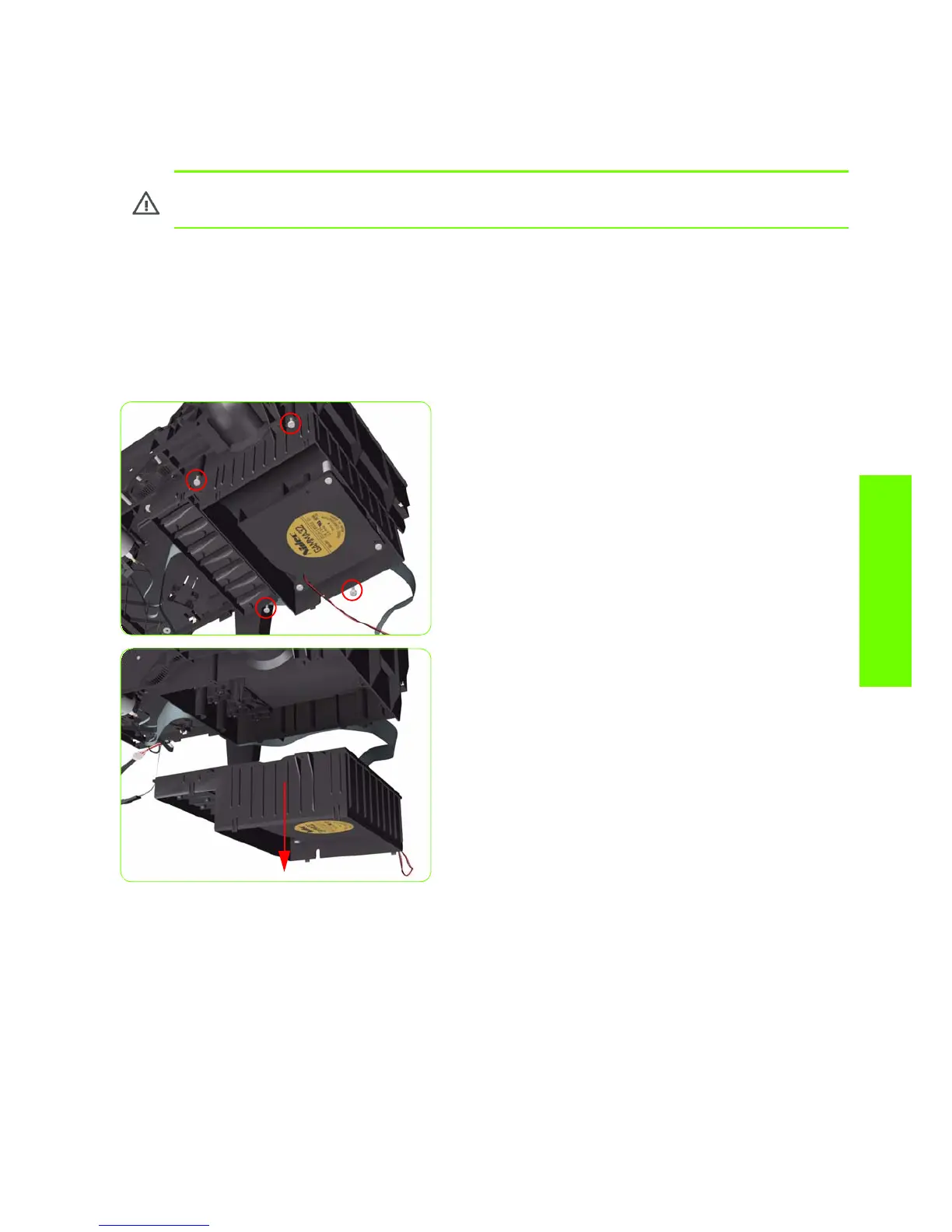

5. Remove four T-15 screws (Type G) that secure the
Aerosol Fan to the Service Station.
6. Remove the Aerosol Fan from the Service Station.
WARNING!: Switch off the printer and remove the power cable.
