HP Designjet Z6100 Printer series

Main PCA Formatter 375
Removal & Installation

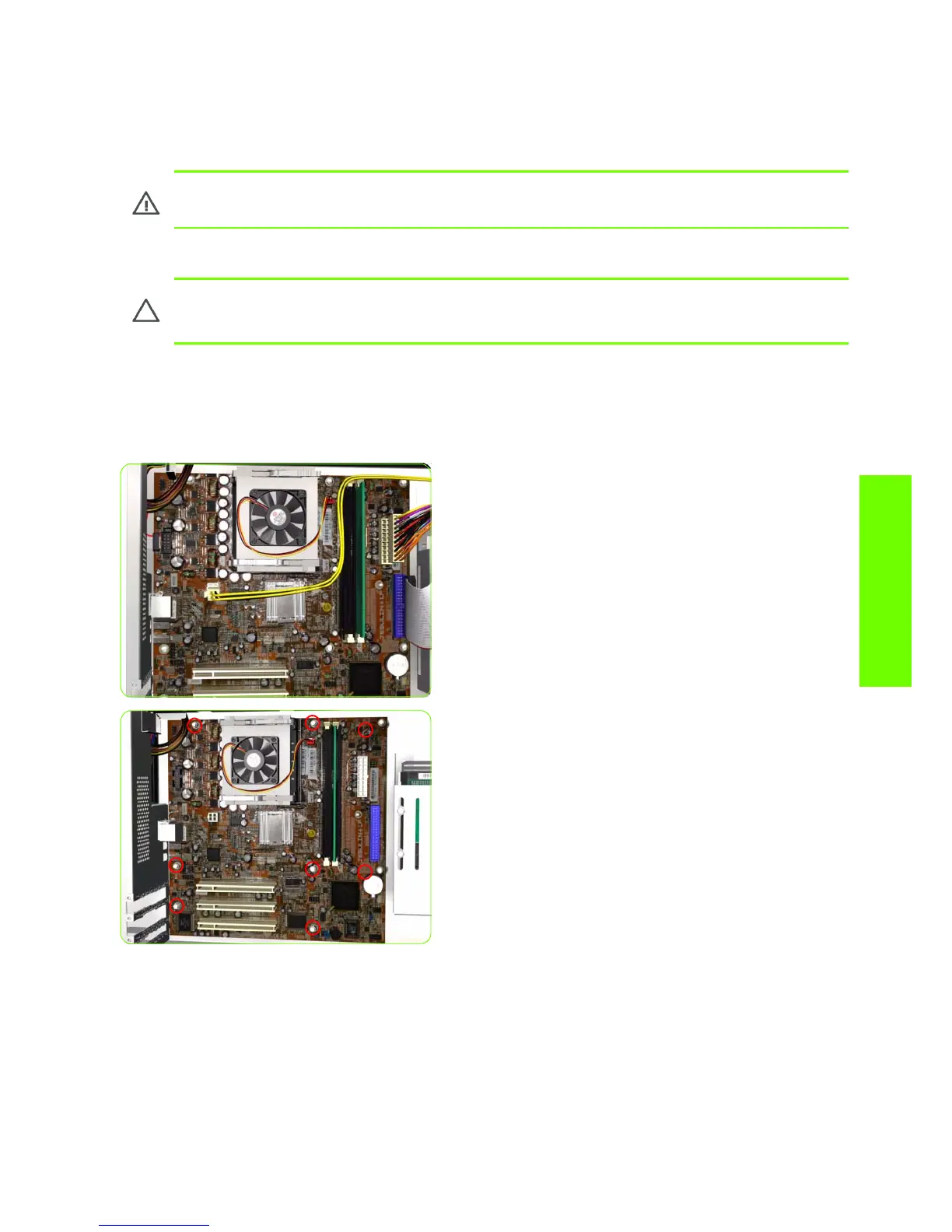

Main PCA Formatter
Removal
1. Remove the EIO to PCI Interface Card ⇒ See
page 360
.
2. Remove the Sausalito PCI PCA ⇒ See page 369 .
3. Remove the Memory Module ⇒ See page 373.
4. Disconnect ALL cables connected to the Main PCA
Formatter.
5. Remove eight T-10 screws (Type I) that secure the
Main PCA Formatter.
WARNING!: Switch off the printer and remove the power cable.
CAUTION: Do NOT remove the Fan or the Processor (located under the Fan) from the Main PCA
Formatter - The Fan and the Processor are part of the Main PCA Formatter support part and should be
replaced as one assembly.
