Pinchwheel Assembly 425
Removal & Installation
Pinchwheel Assembly
Removal
1. Remove the Right Cover
⇒
See page 264
.
2. Remove the Rear Door
⇒
See page 283.
3. Remove the Service Station
⇒
See page 300.

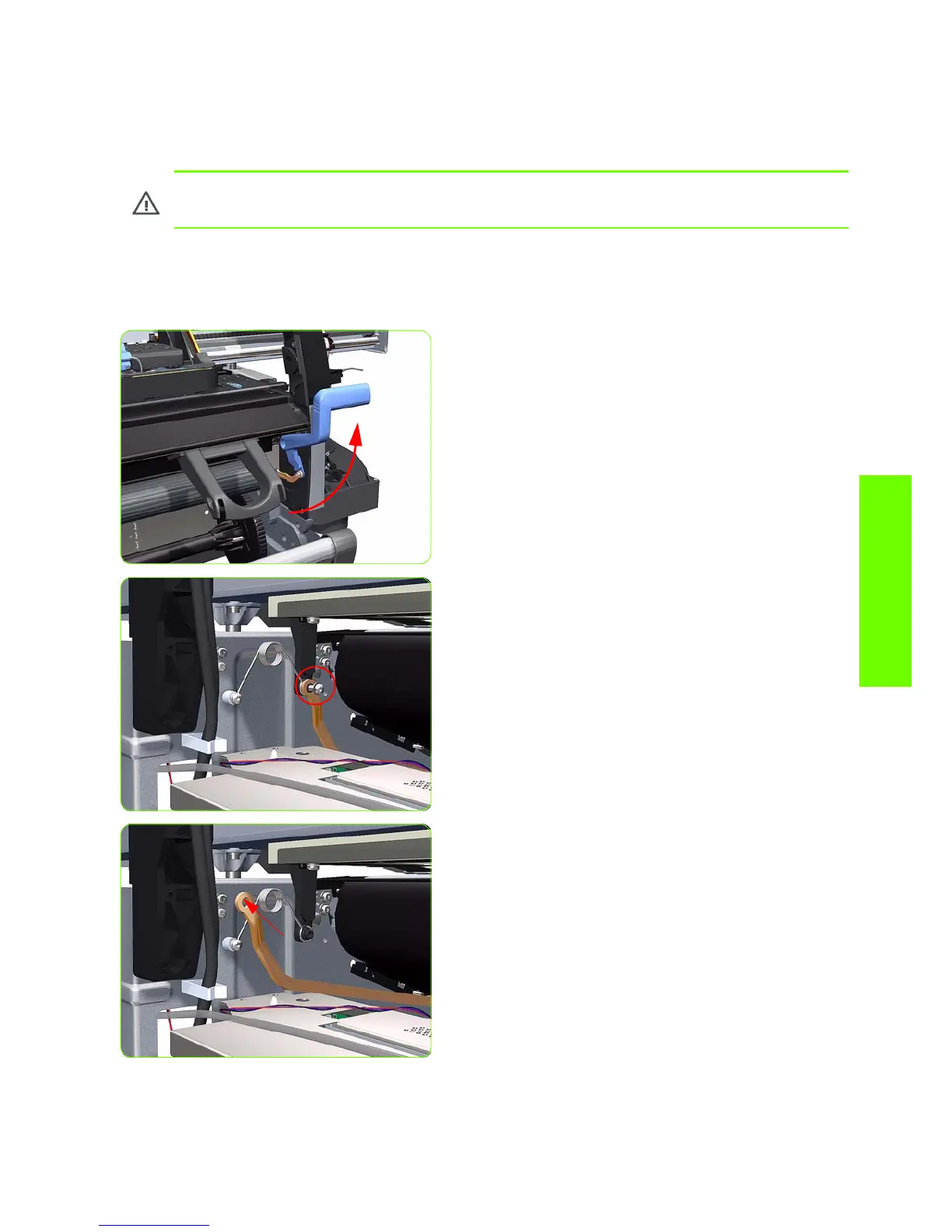

4. Raise the Media Lever.
5. Remove one T-20 screw that secures the Linkage to the
Spring.
6. Disconnect the linkage from the Pinch Wheel cam-arm.
WARNING!: Switch off the printer and remove the power cable.
To Next Page
