HP Designjet Z6100 Printer series

430 Chapter 8 Removal & Installation
Removal & Installation
Center Guide
Removal
1. Remove the Right Cover ⇒ See page 264 .
2. Remove the Left Cover ⇒ See page 270.
3. Remove the Primer Assembly ⇒ See page 294.
4. Remove the Right Connector Cover ⇒ See page 281.
5. Remove:
• For the 42-inch model, the Left Connector Cover
⇒ See page 287.
• For the 60-inch model, the Electronics Module
Extension⇒ See page 288.
6. Remove the Service Station ⇒ See page 300.
7. Remove the Ink Supply Station ⇒ See page 321.
8. Remove the Media Sensor ⇒ See page 423.

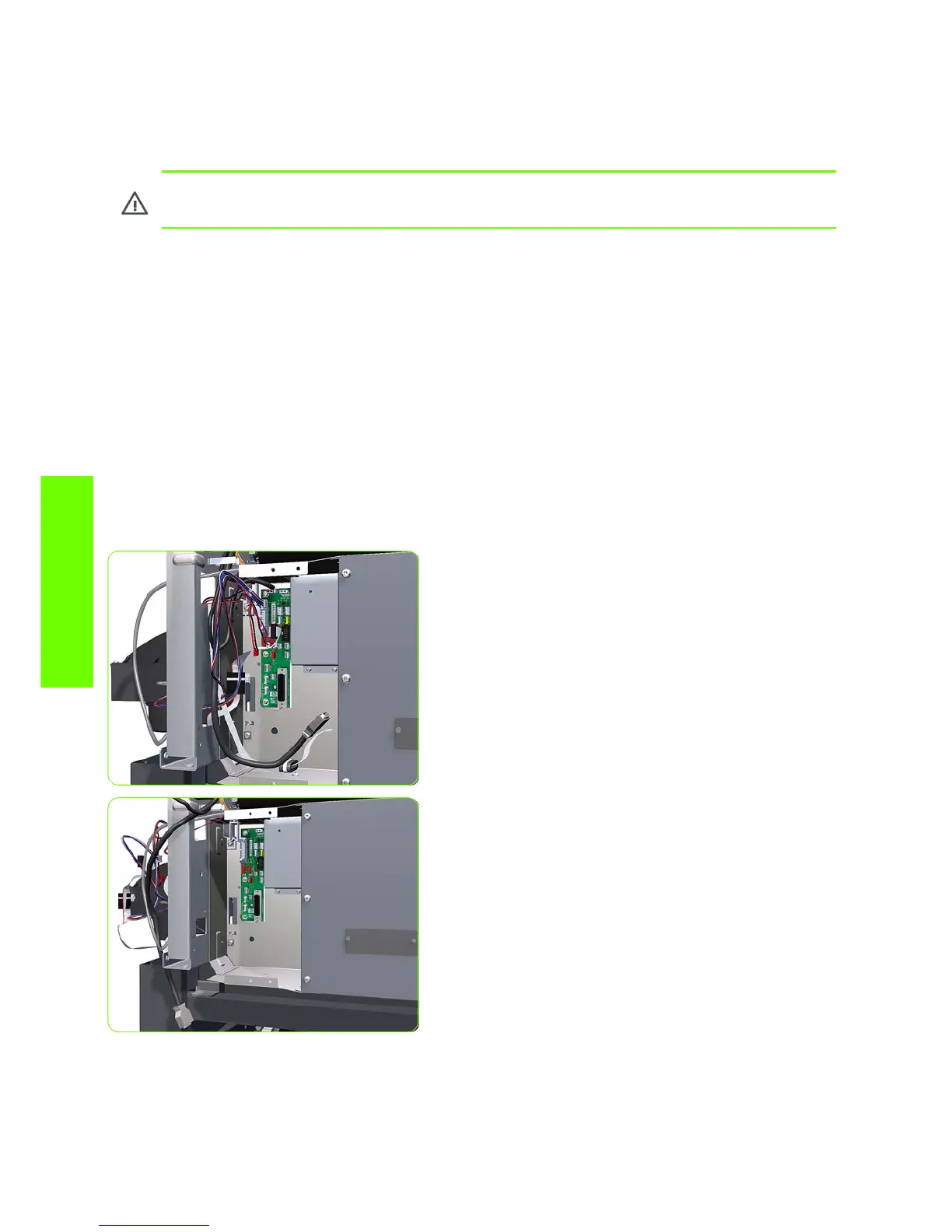

9. Disconnect ALL the cables connected to the right
Interconnect PCA and the Sausalito PCI PCA.
10. Unroute all the disconnected cables so they are clear
of the Electronics Module.
WARNING!: Switch off the printer and remove the power cable.
