Center Guide 431
Removal & Installation

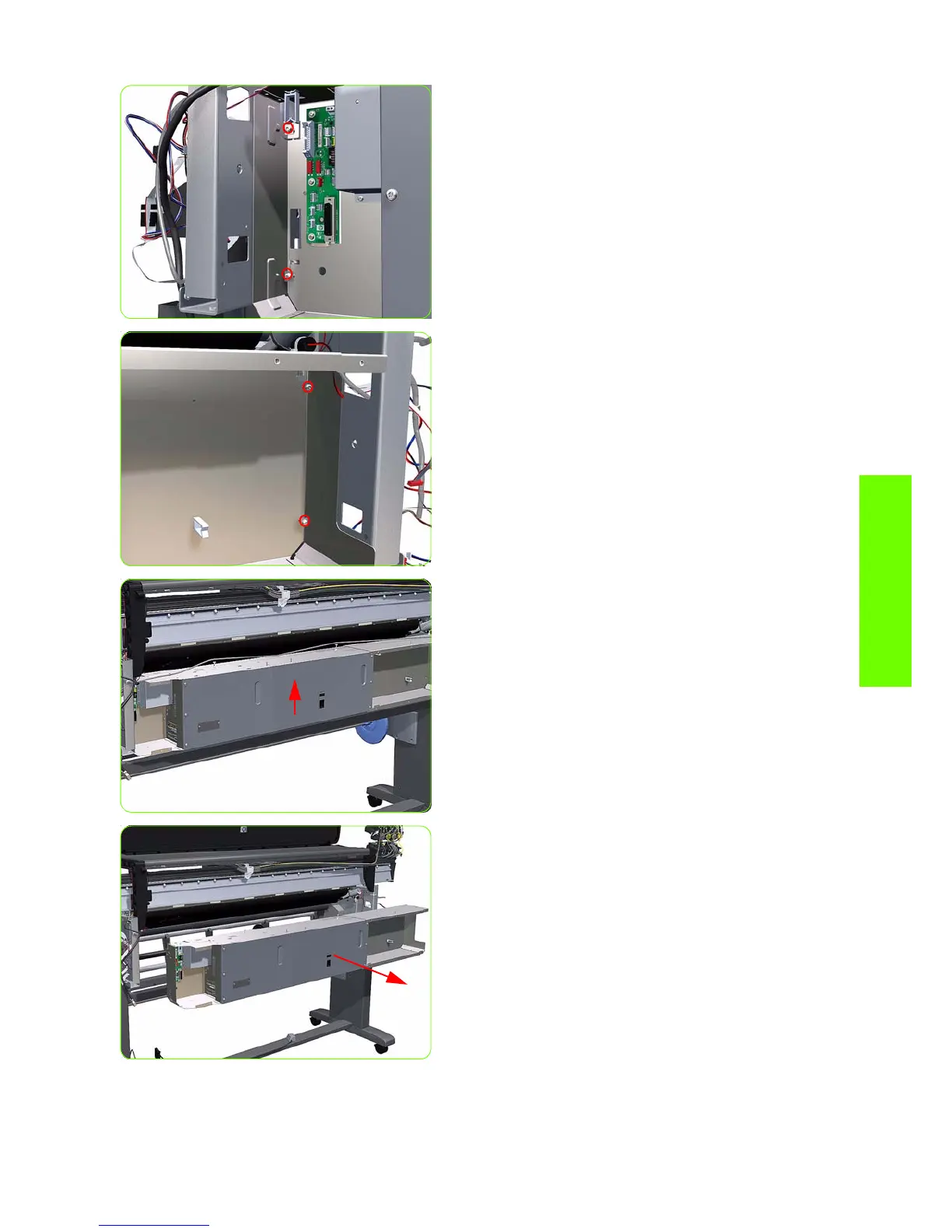

x 11. Remove two T-20 screws (Type B) that secure the right
side Electronics Module.
12. Remove two T-20 screws (Type B) that secure the left
side Electronics Module.
13 . Lift the Electronics Module sufficiently (approximately
2 cm) to release it from the attachments.
14 . Remove the Electronics Module from the Printer.
