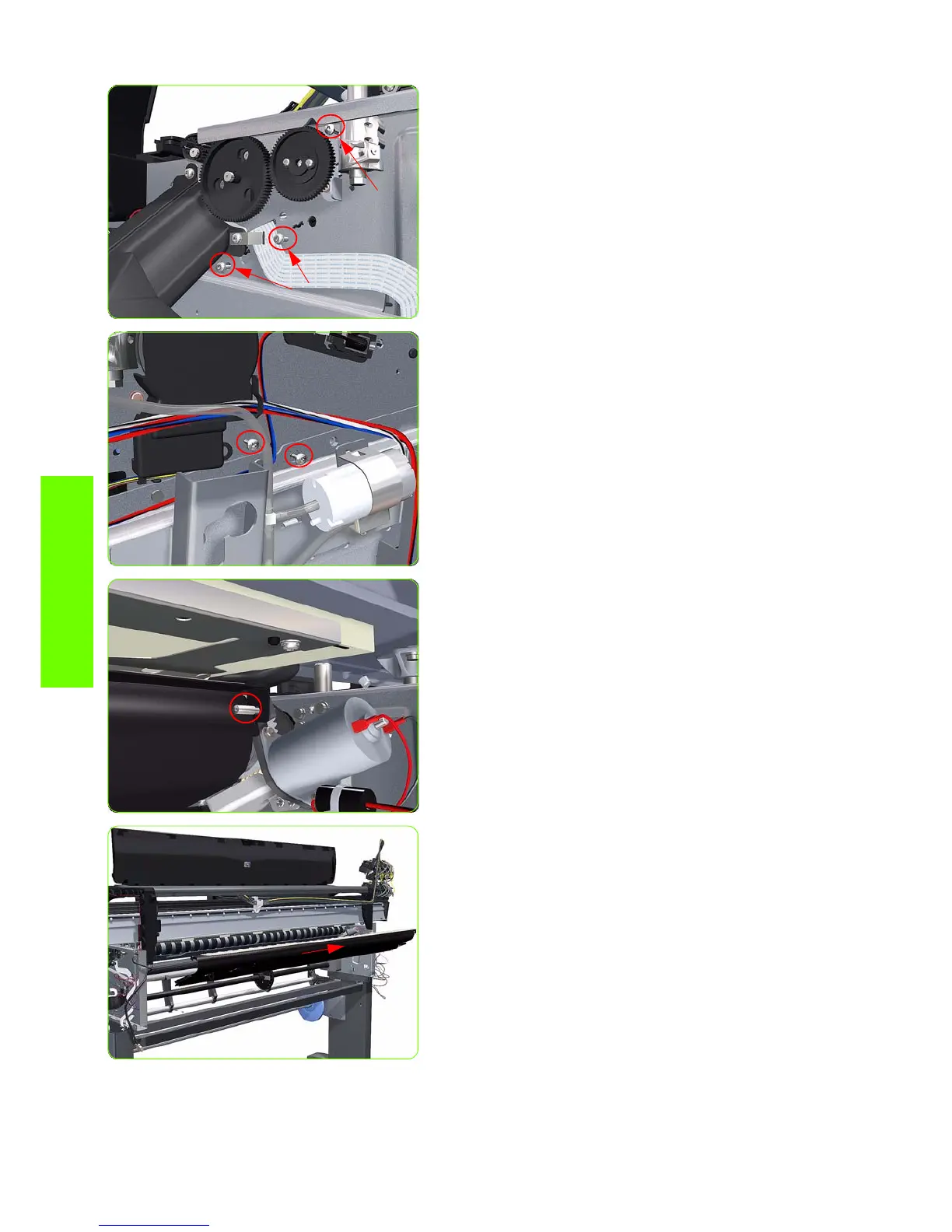

15. Remove one T-15 screw (Type E) and two T-20 screws
(Type A), that secure the Center Guide, from the right
hand side of the Printer.
16. Remove two T-15 screws (Type E), that secure the
Center Guide, from the left hand side of the Printer.
17. Remove one T-15 screw (Type S), that secures the
Center Guide, from underneath the Printer.
18 . Remove the Center Guide from the Printer.
