HP Designjet Z6200

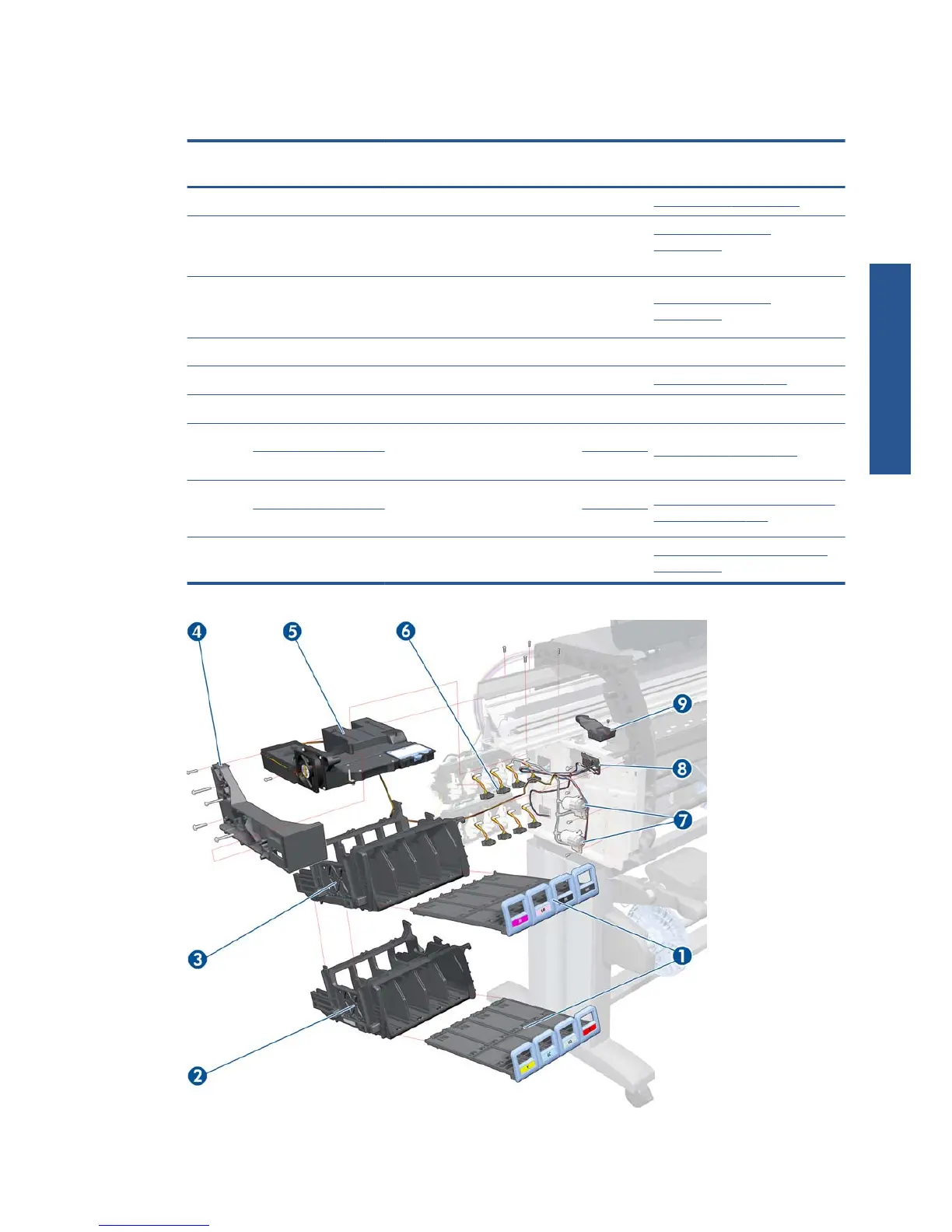

Left-Hand Assemblies
Number
in figure
HP part number Description Model Cross-reference
1 CQ109-67032 Cartridge Trays All
Cartridge Tray on page 373
2 CQ109-67024 Lower Ink Supply Station (without
APS Assembly but including
Cartridge Tray)
All
Ink Supply Station (ISS)
on page 276
3
CQ109-67023 Upper Ink Supply Station (without
APS Assembly but including
Cartridge Tray)
All
Ink Supply Station (ISS)
on page 276
4 Q6651-60315 Left Scan-Axis Bracket All N/A
5 Q6651-60325 Left Spittoon All
Left Spittoon on page 289
6 Q1273-60245 ISS to Cartridge Cable All N/A
7
CQ109-67027
APS Assembly with Pump, Holder
and Relief Valve
42-inch
APS Assembly on page 283
CQ111-67002 60-inch
8
CQ109-67018
Embedded SpectroPhotometer (ESP)
Actuator
42-inch
Embedded SpectroPhotometer (ESP)
Actuator on page 358
CQ111-67009 60-inch
9 Q6651-60326 Blanking Plate (Spittoon) All
Encoder Strip and Encoder Sensor
on page 292
ENWW
Left-Hand Assemblies
195
Parts and diagrams
