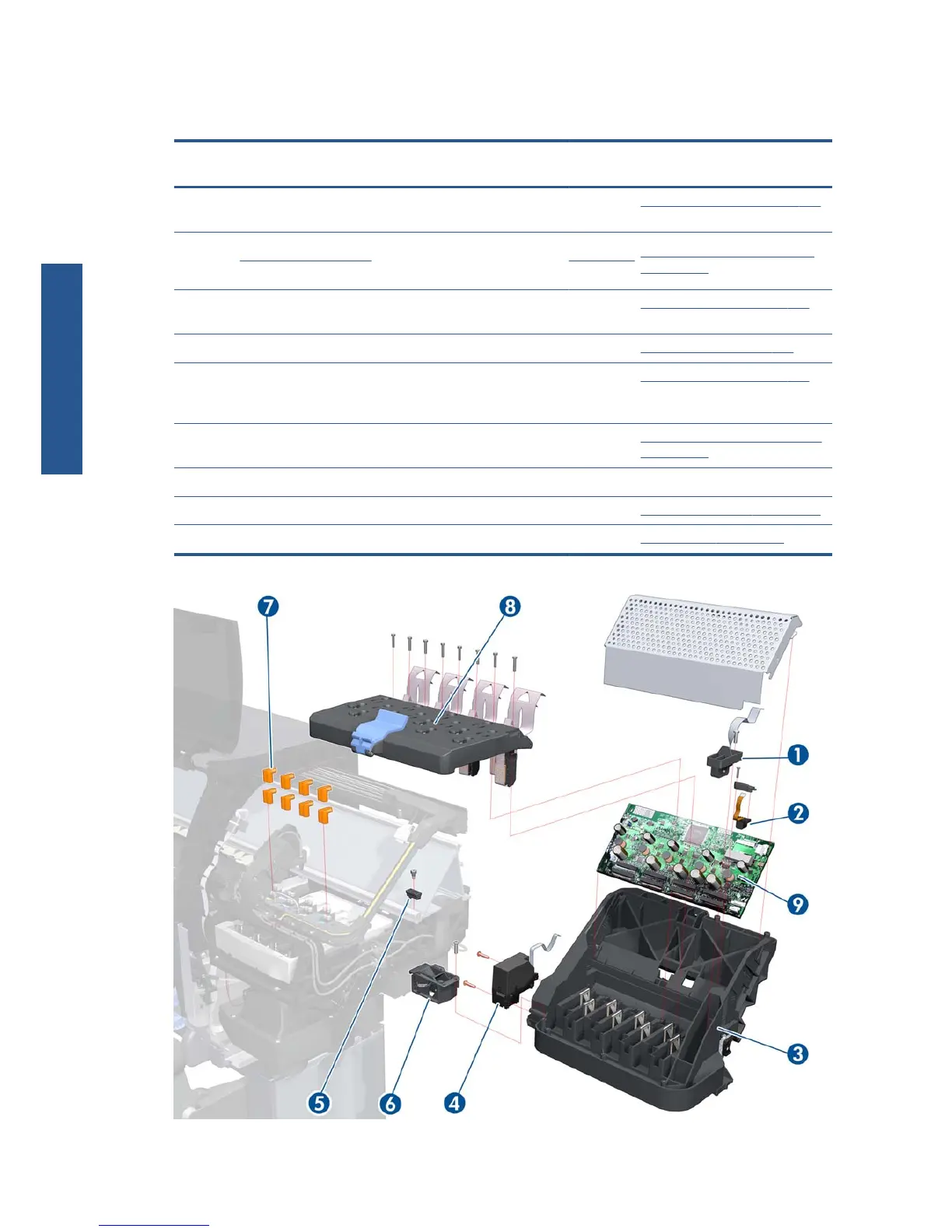

HP Designjet Z6200

Carriage
Number
in figure
HP part number Description Model Cross-reference
1 CQ105-60130 Line Sensor Assembly with Holder
and Cable
All
Line Sensor Assembly on page 353
2
Q6651-60051
Encoder Sensor (includes Encoder
Strip)
42-inch
Encoder Strip and Encoder Sensor
on page 292
Q6652-60148 60-inch
3 CQ109-67011 Carriage Assembly without PCA,
Encoder Sensor or ESP
All
Carriage Assembly on page 301
4 CH955-67007 Cutter Assembly All
Cutter Assembly on page 275
5 Q6651-60341 Carriage Stopper (includes
Carriage Stopper Screw and
Media-Axis Motor Bracket)
All
Carriage Assembly on page 301
6
Q6651-60039
Embedded SpectroPhotometer (ESP)
All
Embedded SpectroPhotometer (ESP)
on page 355
7 Q6651-60335 Setup Printhead Kit All N/A
8 Q6651-60337 Carriage Flex Cables All
Carriage Flex Cables on page 299
9 CQ109-67034 Carriage PCA All
Carriage PCA on page 296
