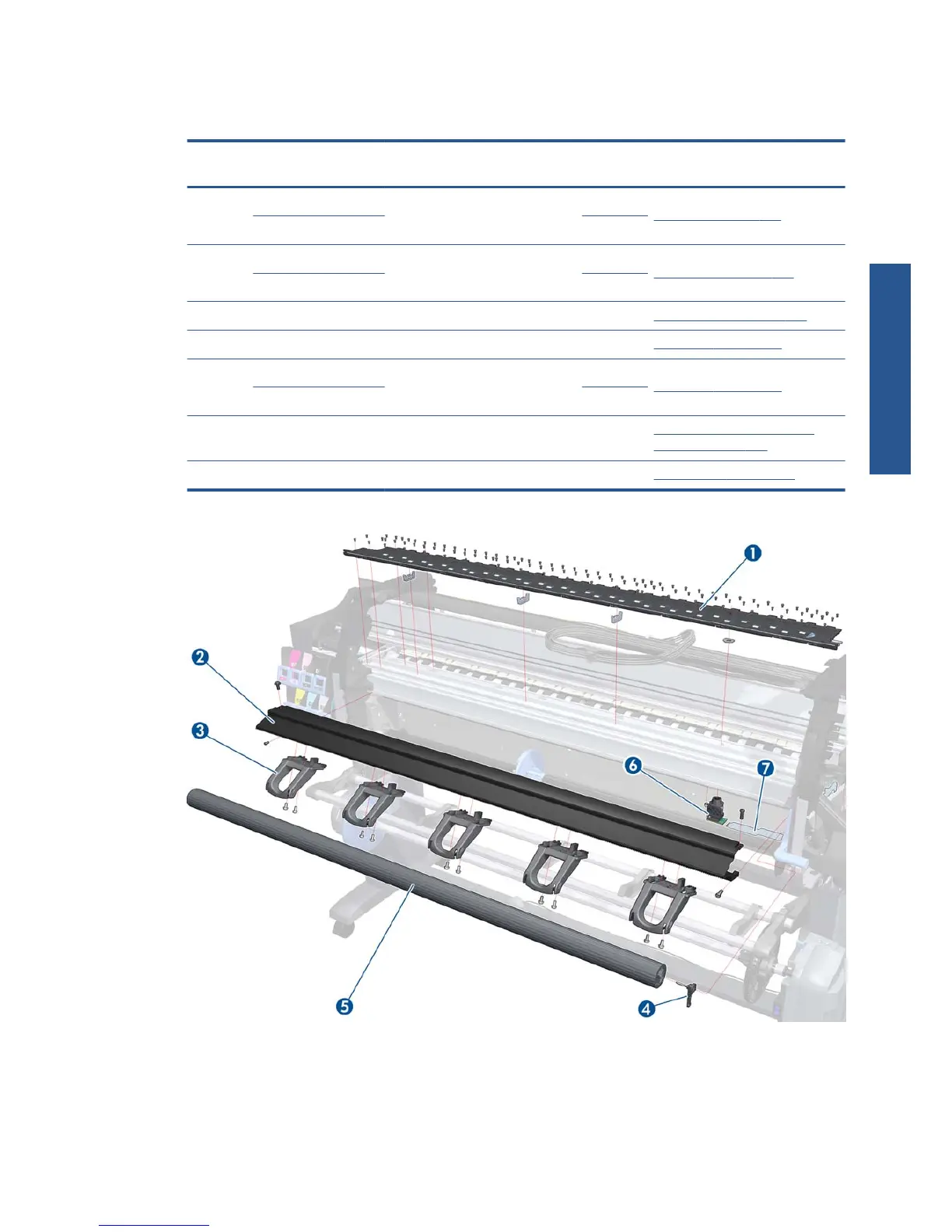

HP Designjet Z6200

Paper Path Assemblies
Number
in figure
HP part number Description Model Cross-reference
1
Q6651-60281
Print Platen with Attachment Screw
Retainer
42-inch
Print Platen on page 362
Q6652-60111 60-inch
2
Q6651-60295
Front Platen
42-inch
Output Platen on page 361
Q6652-60115 60-inch
3 Q6652-60120 Media Deflector All
Media Deflector on page 360
4 Q1273-60103 Input Roller Lever All
Input Roller on page 375
5
Q1273-60058
Input Roller
42-inch
Input Roller on page 375
Q6652-60114 60-inch
6
Q6651-60270
OMAS Module
All
Optical Media Advance Sensor
(OMAS) on page 316
7 Q6651-60269 OMAS Cable All
OMAS Cable on page 329
