HP Designjet Z6200

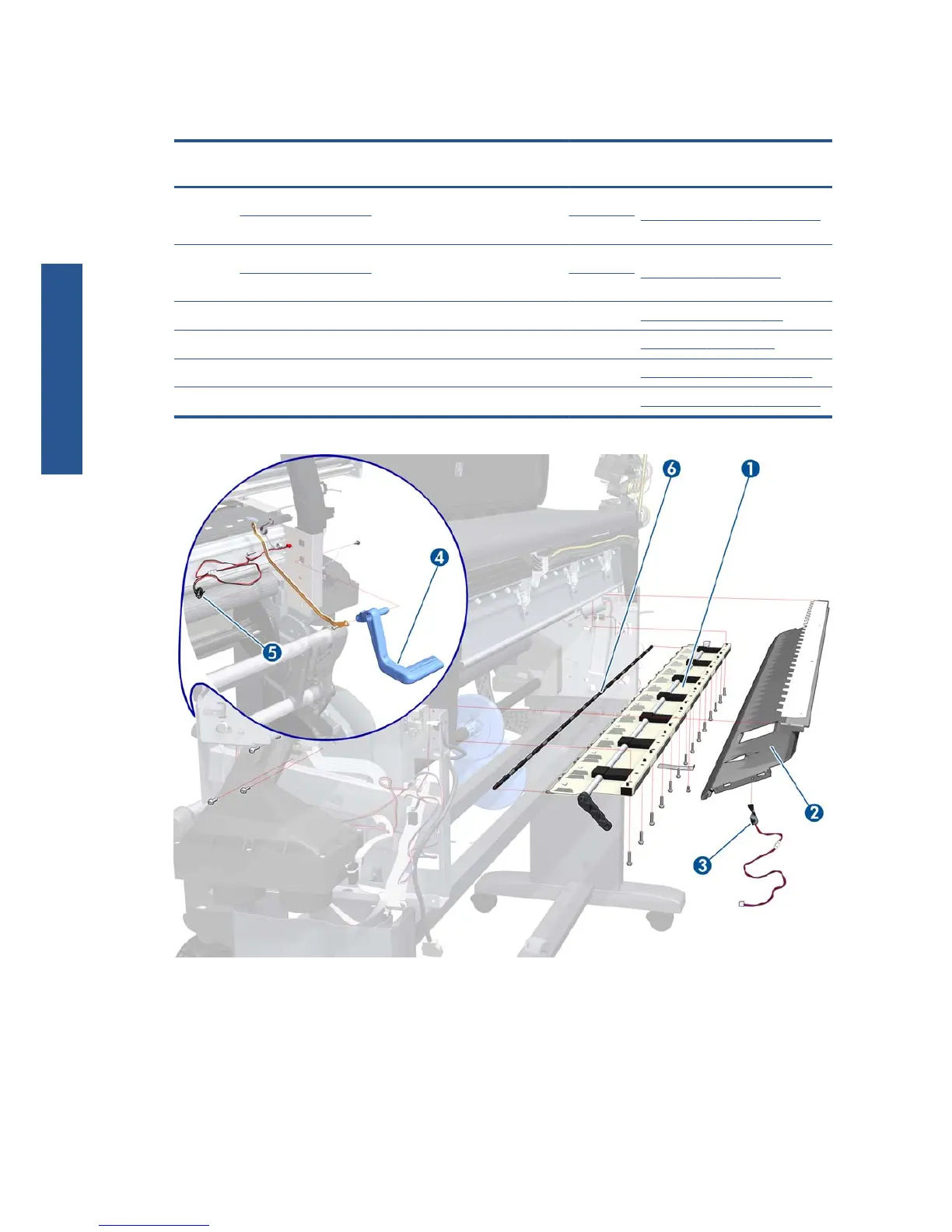

Center Guide and Pinchwheel Assembly
Number
in figure
HP part number Description Model Cross-reference
1
CH955-67122
Complete Pinchwheel Assembly with
Media Sensor
42-inch
Pinchwheel Assembly on page 390
CH956-67047 60-inch
2
Q6651-60345
Center Guide
42-inch
Center Guide on page 395
Q6652-60130 60-inch
3 Q1273-60079 Media Sensor All
Media Sensor on page 378
4 Q6651-60319 Media Lever Assembly All
Media Lever on page 383
5 CQ109-67002 Media Lever Sensor All
Media Lever Sensor on page 386
6 Q6651-60066 Pinchwheel Kit All
Pinchwheel Assembly on page 390
