WARNING! Switch off the printer and remove the power cable.
1. Remove the Right Cover See Right Cover on page 216.

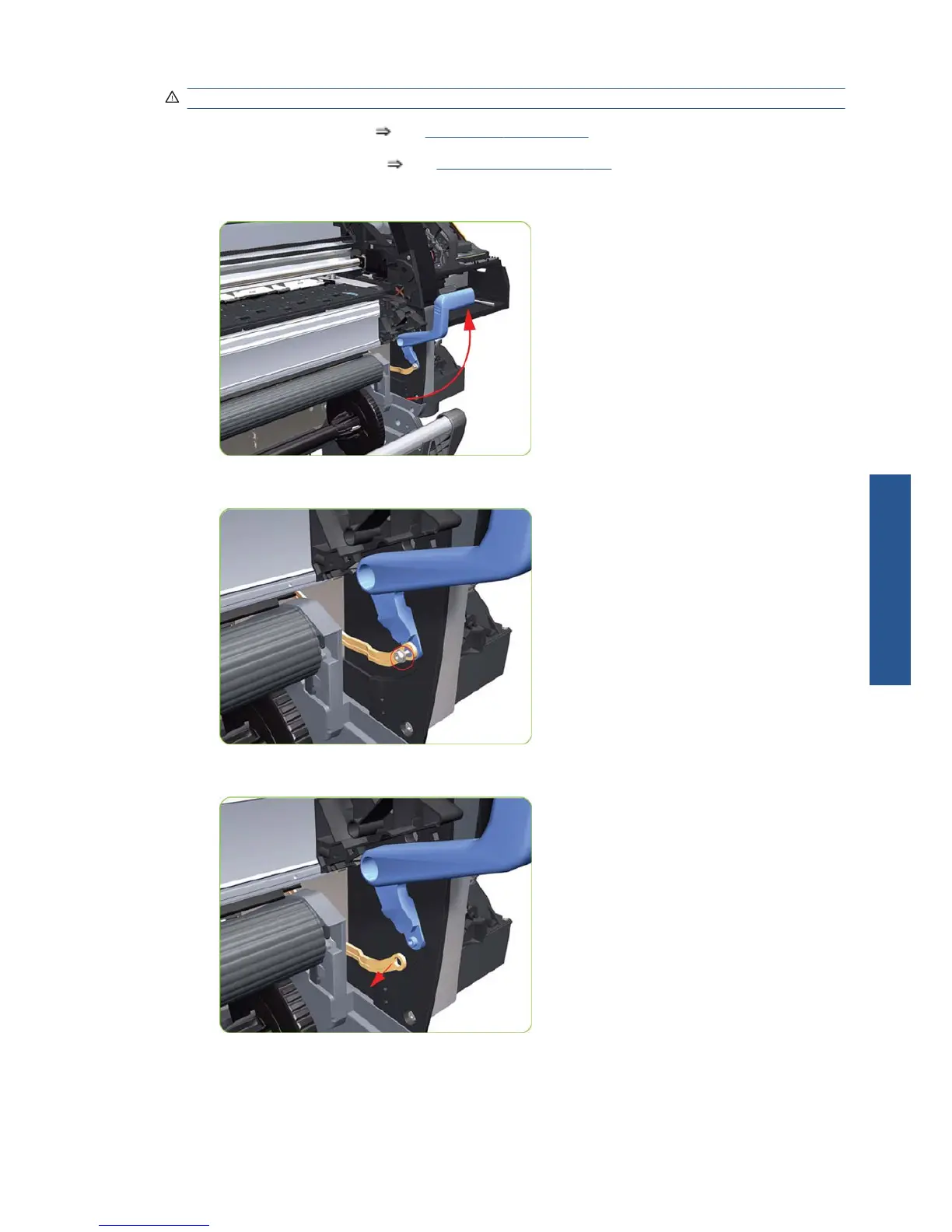

2. Remove the Output Platen
See Output Platen on page 361.
3. Raise the Media Lever.
4. Remove one T-15 screw (Type F) that secures the Media Lever to the Linkage.
5. Disconnect the Media Lever from the Linkage.
ENWW
Disassembly order
219
Removal and
installation
