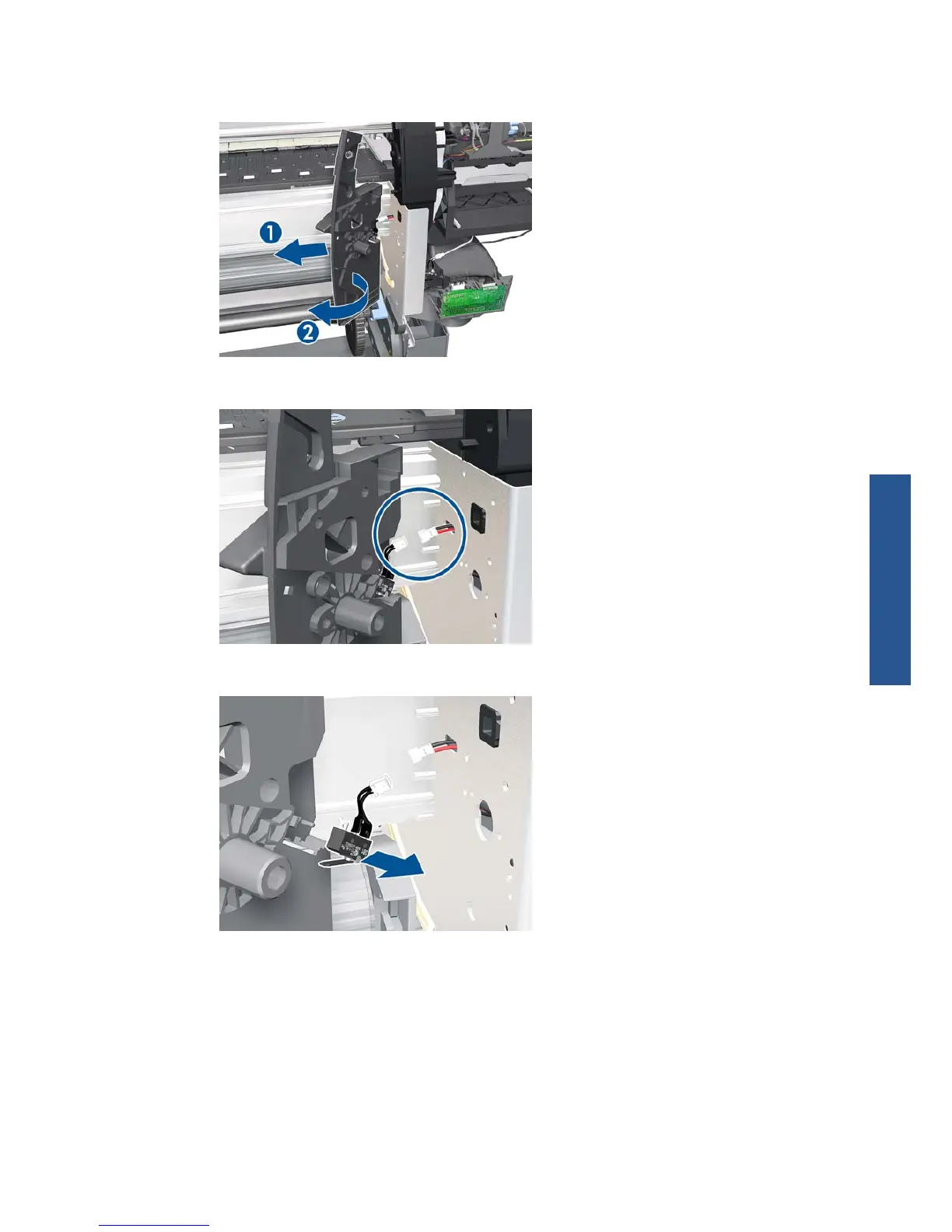

9. Carefully rotate the Right Trim sufficiently to gain access to the Media Lever Position Sensor.
10. Disconnect the cable from the Media Lever Position Sensor.
11. Unclip the Media Lever Position Sensor from its mounting lugs on the Right Trim.
