HP Designjet Z6200

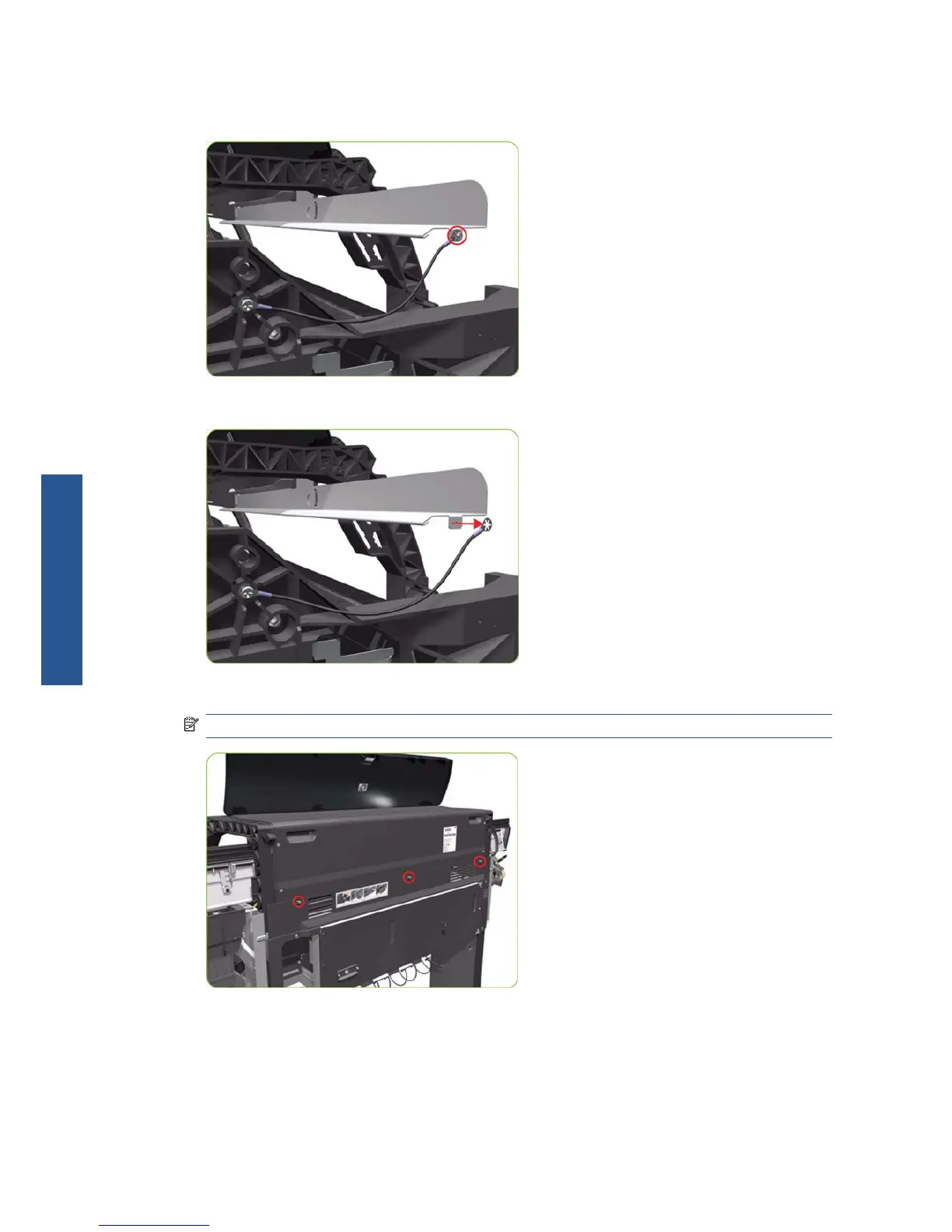

6. Remove one T-10 (Type I) screw that secures the ESD Strip to the Top Cover (on the left-hand side
of the printer).
7. Disconnect the ESD Strip from the Top Cover.
8. Remove the three T-15 screws (Type G) that secure the Rear Door.
NOTE: Each screw includes a washer (part number 3050-1267).
226 Chapter 8 Removal and installation ENWW
Removal and
installation
