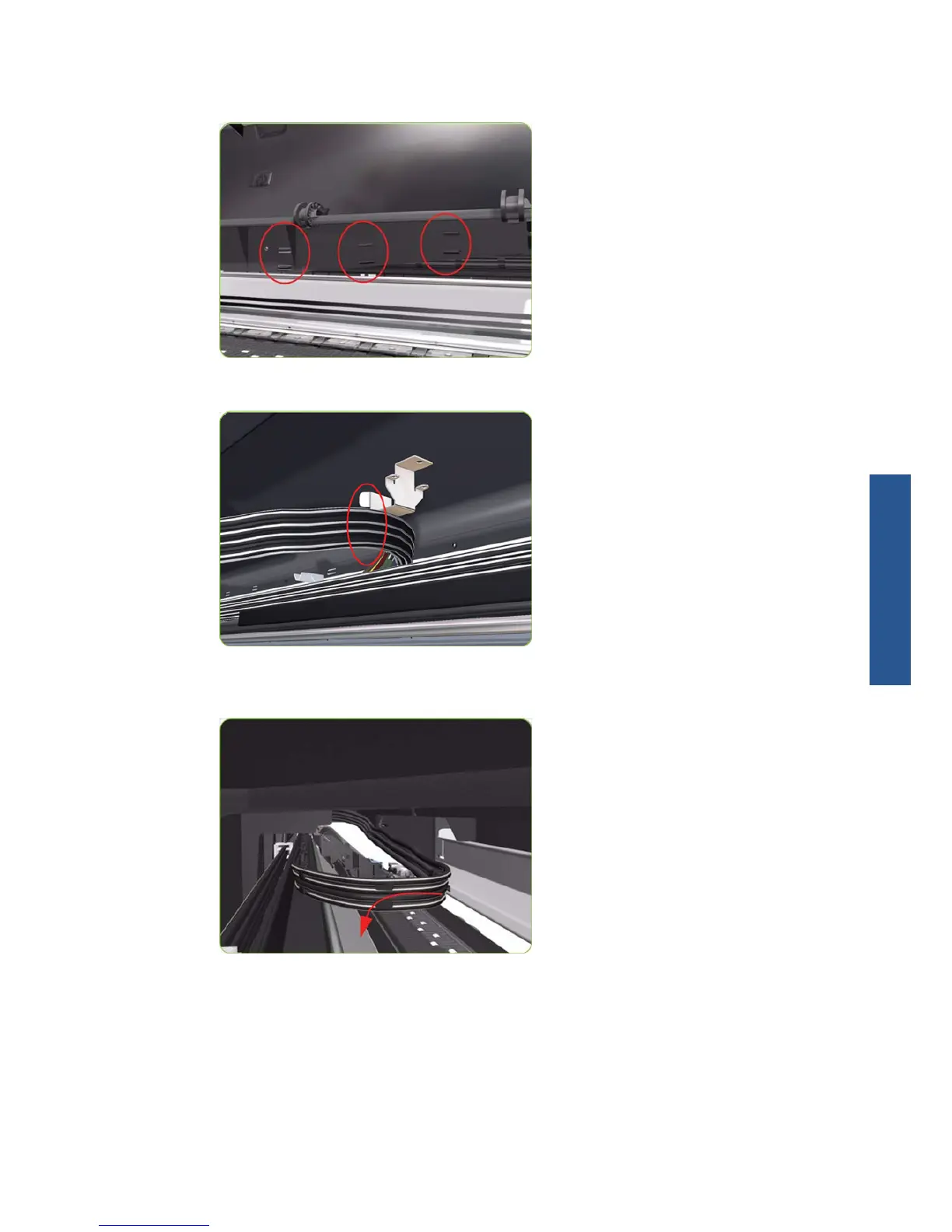

3. Release the three clips securing the Ink Supply Tubes and the Trailing Cable to the Top Cover.
4. Release the Ink Supply Tubes and Trailing Cable from the clip underneath the Top Cover.
5. Remove the Ink Supply Tubes and Trailing Cable from within the Top Cover and lay them on the
Print Platen.
