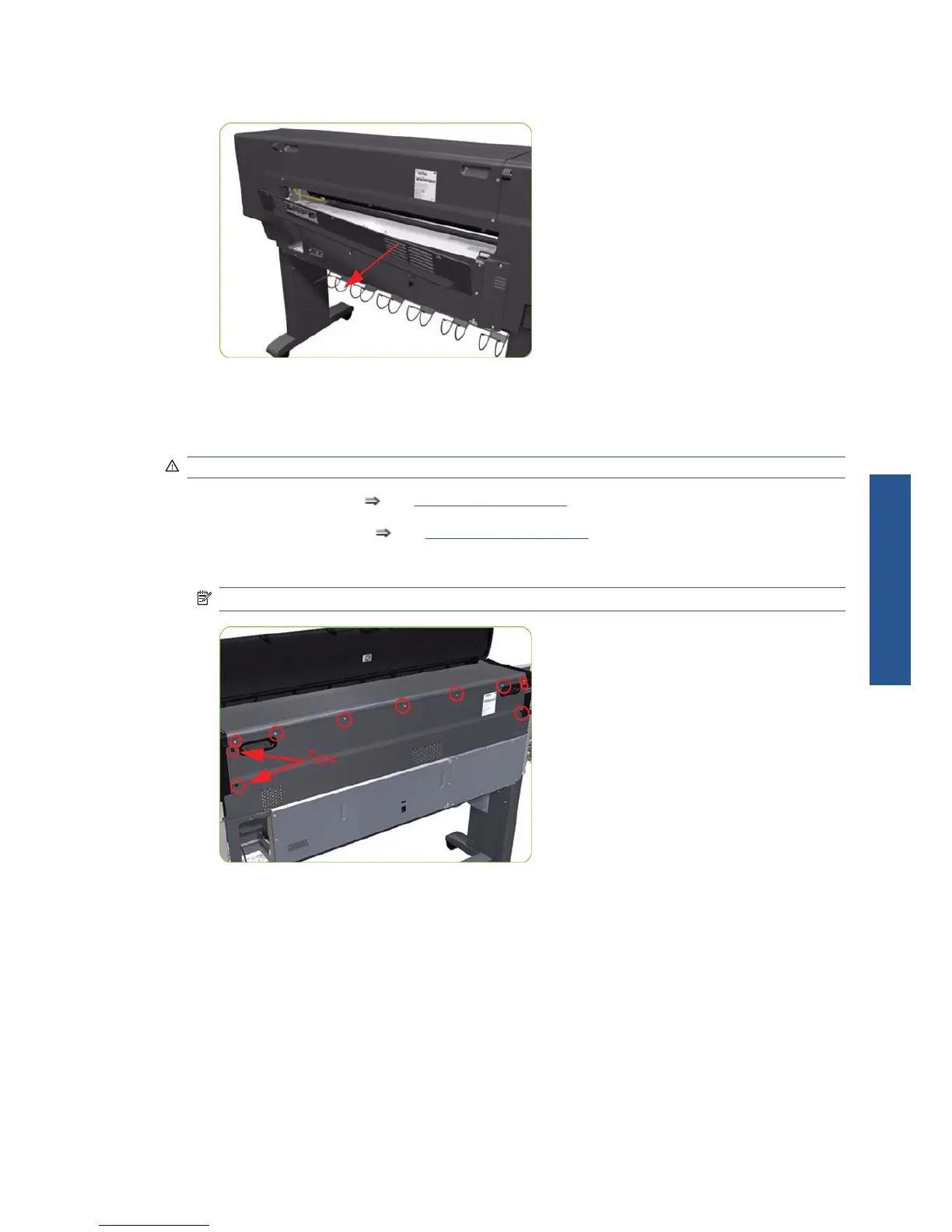

5. Remove the Rear Door from the printer.
Rear Door (60-inch)
Removal
WARNING! Switch off the printer and remove the power cable.
1. Remove the Left Cover See Left Cover on page 222.
2. Remove the Right Cover
See Right Cover on page 216.
3. Remove seven T-20 screws and the four T-15 screws (Type X) from the Rear Door.
NOTE: Each Type X screw includes a washer (part number 3050-1267).
