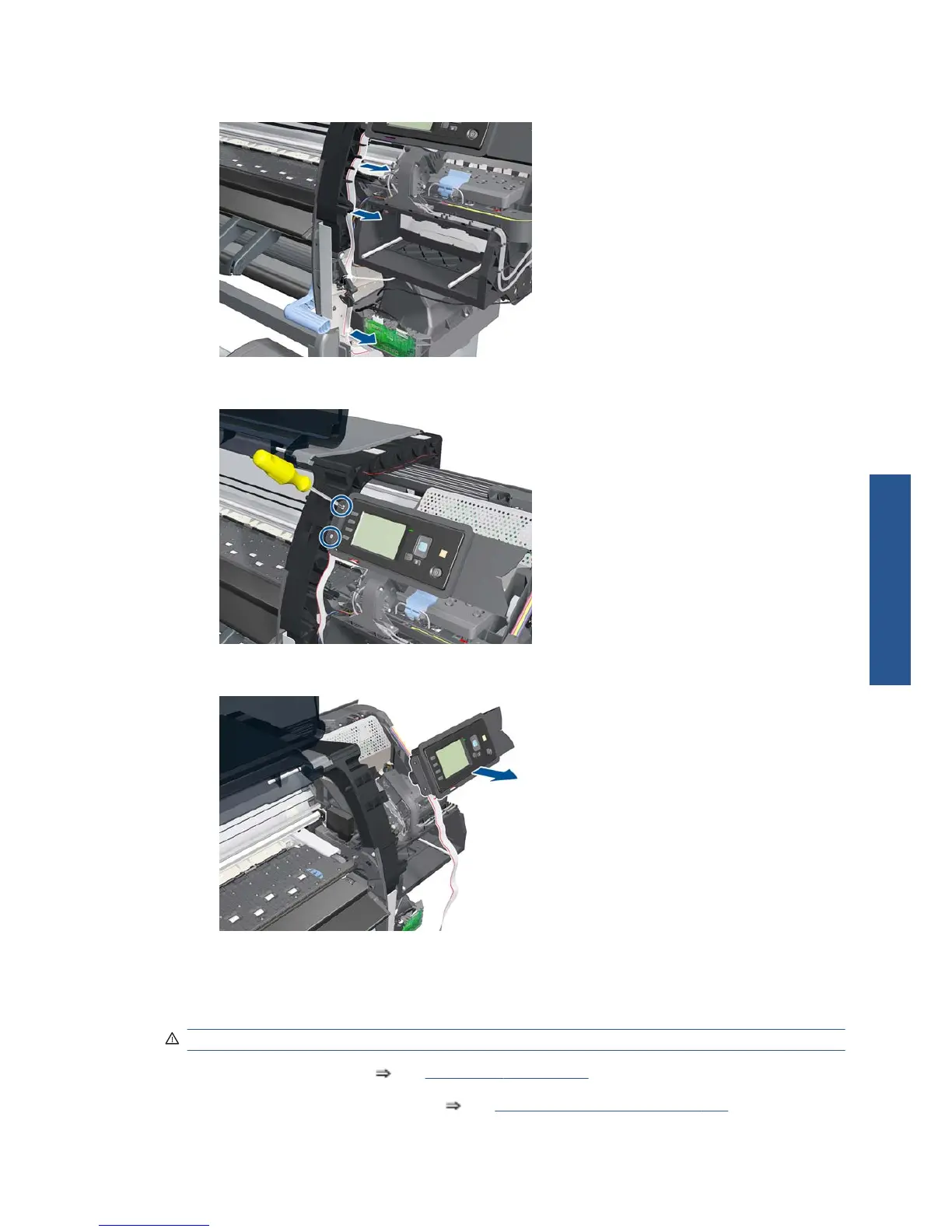

6. Release the Front Panel Cable from the Right Arc.
7. Remove two T-15 screws (Type G) that secure the Front Panel to the printer.
8. Remove the Front Panel from the printer.
Primer Assembly
Removal
WARNING! Switch off the printer and remove the power cable.
1. Remove the Right Cover See Right Cover on page 216.
2. Remove the Right Connector Cover
See Right Connector Cover on page 238.
ENWW
Disassembly order
247
Removal and
installation
