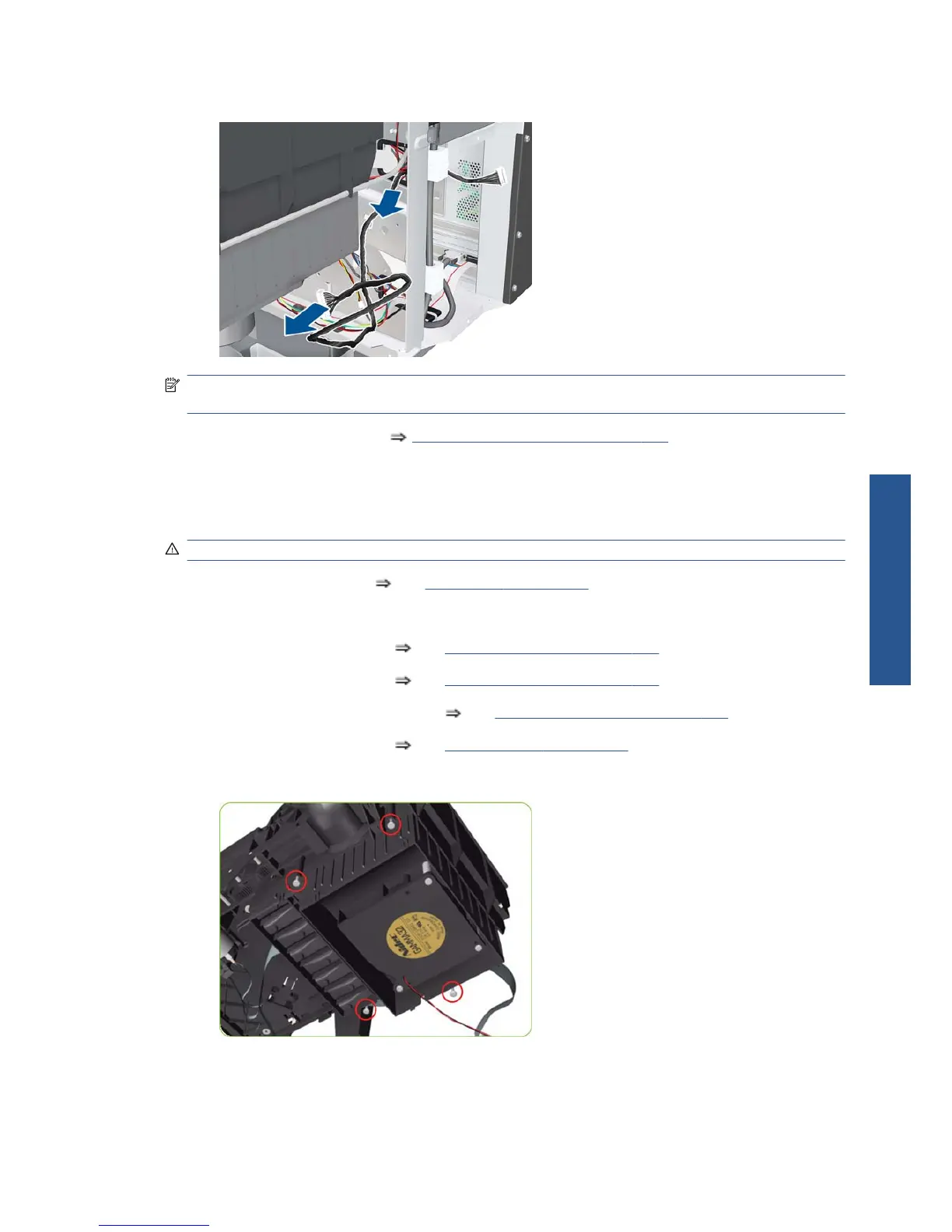

7. Remove the cable.
NOTE: After installing the new Vacuum Fan, make sure you perform the following Service
Calibration:
●
Paper-advance calibration
Paper-advance calibration on page 127.
Aerosol Fan and Filter
Removal
WARNING! Switch off the printer and remove the power cable.
1. Remove the Right Cover See Right Cover on page 216.
2. Remove the Rear Door:
●
For the 42-inch model
See Rear Door (42-inch) on page 235.
●
For the 60-inch model
See Rear Door (60-inch) on page 237.
3. Remove the Right Connector Cover
See Right Connector Cover on page 238.
4. Remove the Service Station
See Service Station on page 252.
5. Remove four T-15 screws (Type G) that secure the Aerosol Fan to the Service Station.
ENWW
Disassembly order
261
Removal and
installation
