HP Designjet Z6200

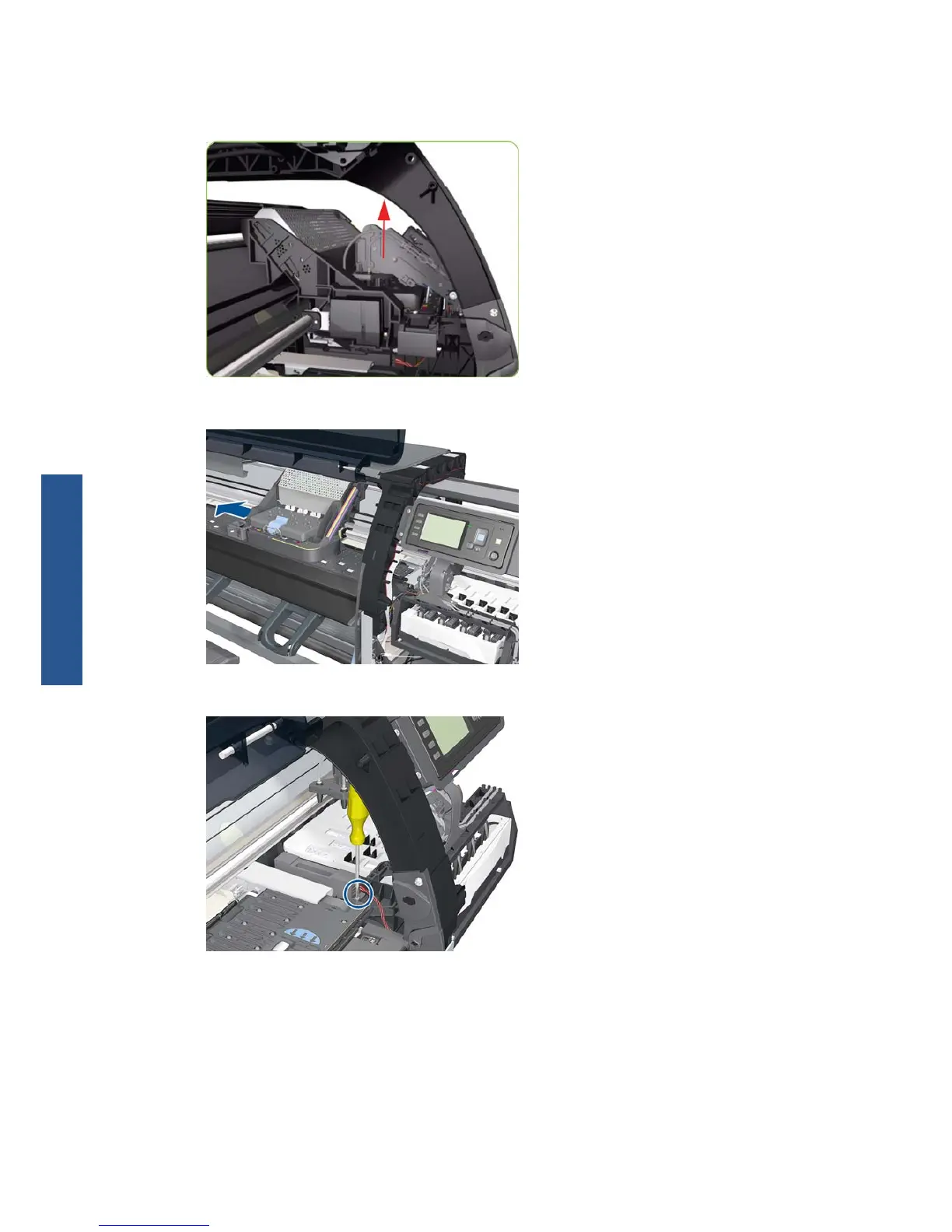

5. Lift the Primer and hold it as high as possible to avoid damaging it when you move the Carriage
Assembly in the next step.
6. Slide the Carriage Assembly leftwards into the print path so that you can reach the Drop Detector.
7. Remove one T-8 screw (Type K) that secures the Drop Detector to the Service Station.
264 Chapter 8 Removal and installation ENWW
