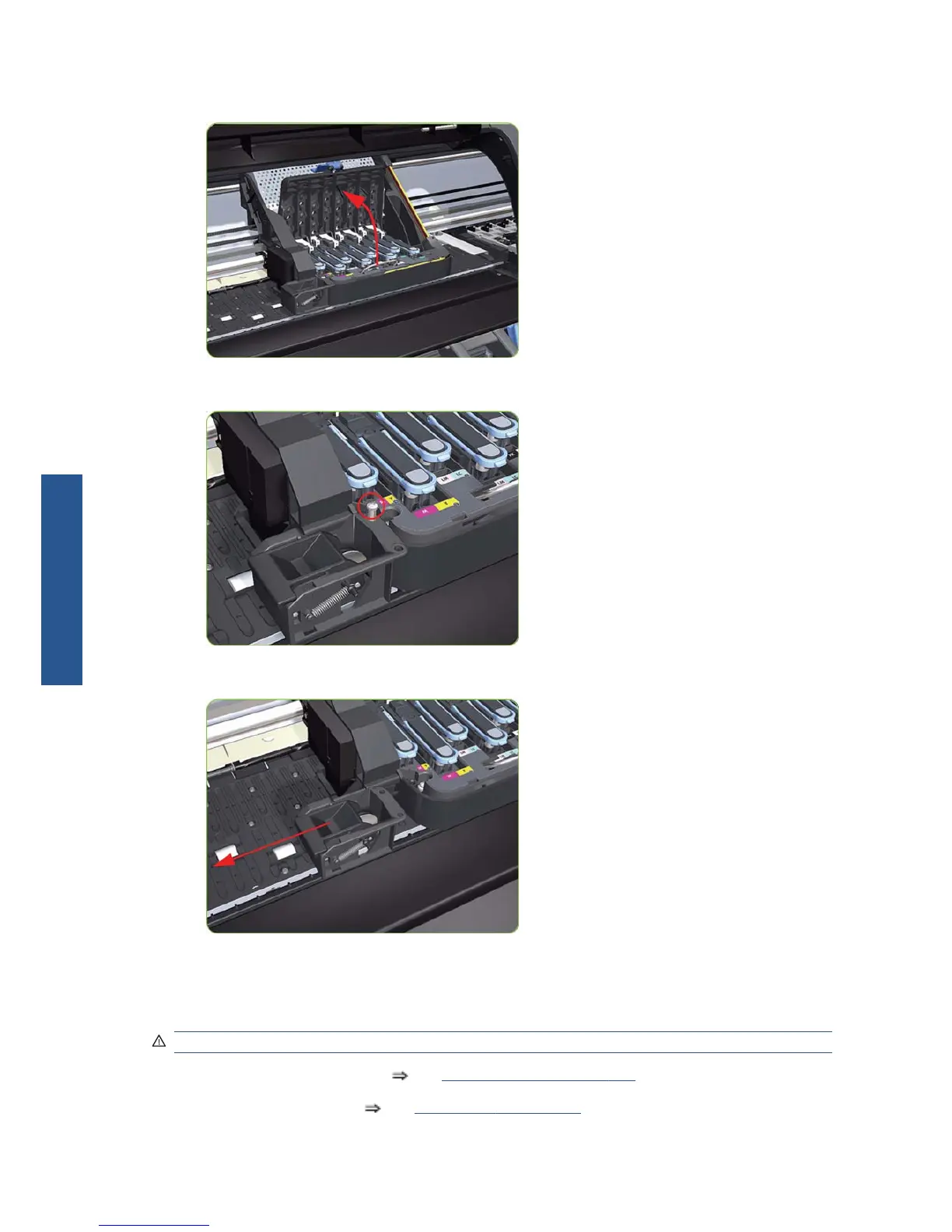

3. Open the Carriage Cover.
4. Remove one T-15 screw (Type G) that secures the Cutter Assembly to the Carriage Assembly.
5. Slide the Cutter Assembly to the left and remove from the printer.
Ink Supply Station (ISS)
Removal
WARNING! Switch off the printer and remove the power cable.
1. Remove the Scan-Axis Motor See Scan-Axis Motor on page 308.
2. Remove the Left Spittoon
See Left Spittoon on page 289.
276 Chapter 8 Removal and installation ENWW
