WARNING! Switch off the printer and remove the power cable.
1. Remove the Right Cover See Right Cover on page 216.
2. Remove the Left Cover
See Left Cover on page 222.

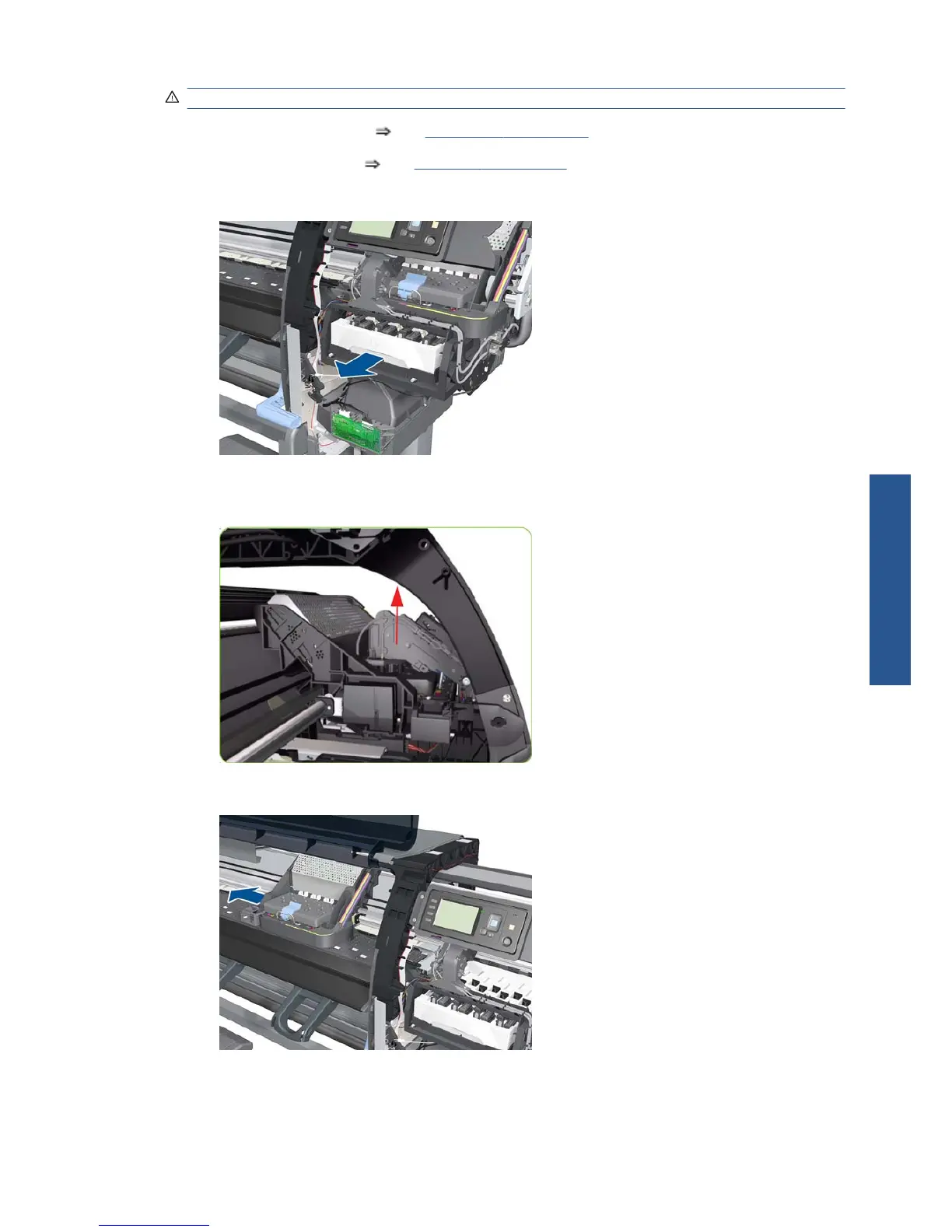

3. Uncap the Carriage Assembly by manually pulling out the Printhead Maintenance Cartridges tray.
4. Lift the Primer and hold the Primer to its maximum position to avoid damaging it when you move
the Carriage Assembly in the next step.
5. Move the Carriage Assembly out of the Service Station.
