HP Designjet Z6200 - Interconnect PCA Removal

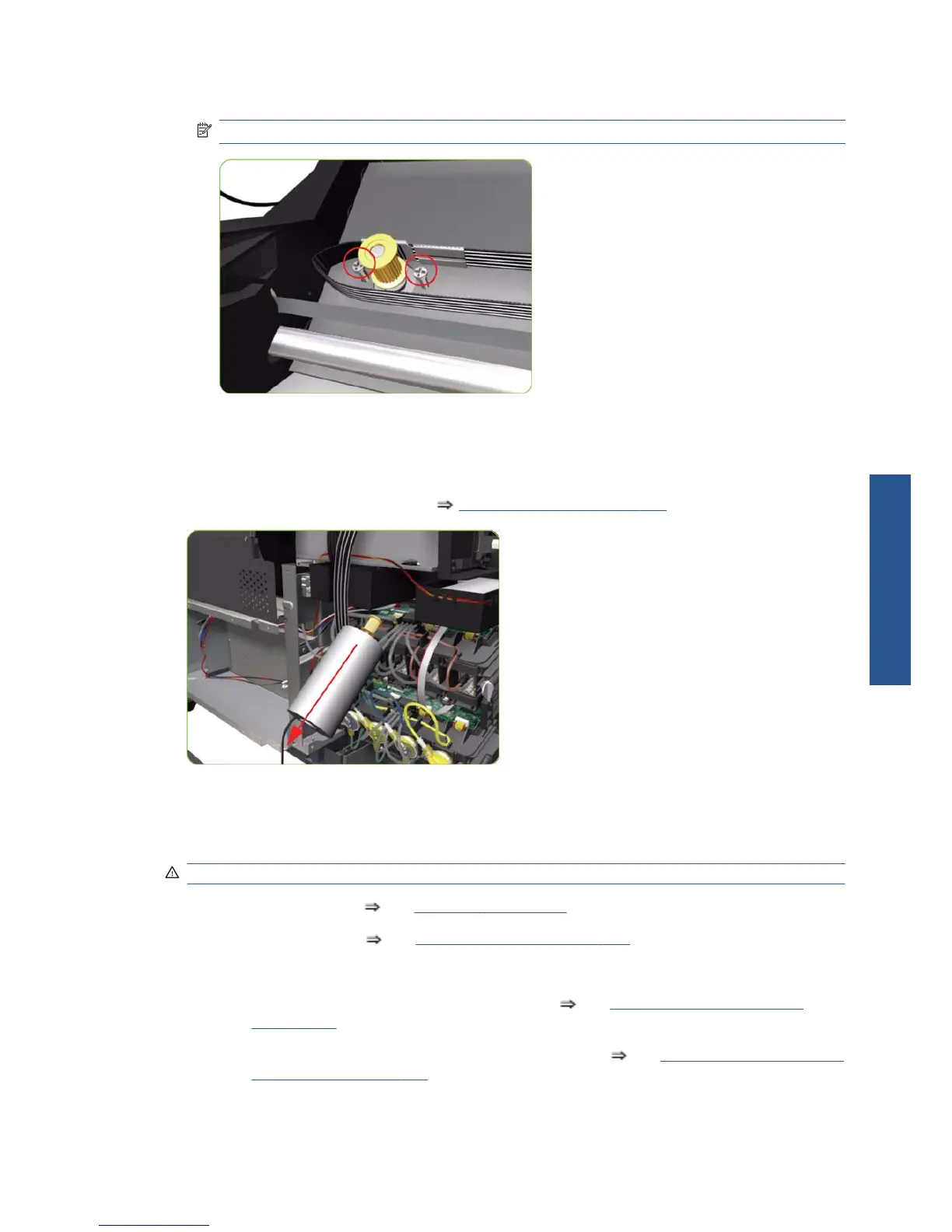

15. Remove two T-20 screws (Type A) that secure the Scan-Axis Motor.
NOTE: Make sure you hold the Scan-Axis Motor securely when removing the screws.
16. Remove the Scan-Axis Motor from the printer.
NOTE: After installing the new Scan-Axis Motor, make sure you perform the following Service
Utility:
●
Reset scan motor life counter
Reset Life Counters on page 108.
Media-Axis Motor
Removal
WARNING! Switch off the printer and remove the power cable.
1. Remove the Left Cover See Left Cover on page 222.
2. Remove the Rear Door
See Rear Door (60-inch) on page 237.
3. Remove:
●
For the 42-inch model, the Left Connector Cover
See Left Connector Cover (42-inch)
on page 240.
●
For the 60-inch model, the Electronics Module Extension
See Electronics Module Extension
(60-inch only) on page 241.
