HP Designjet Z6200

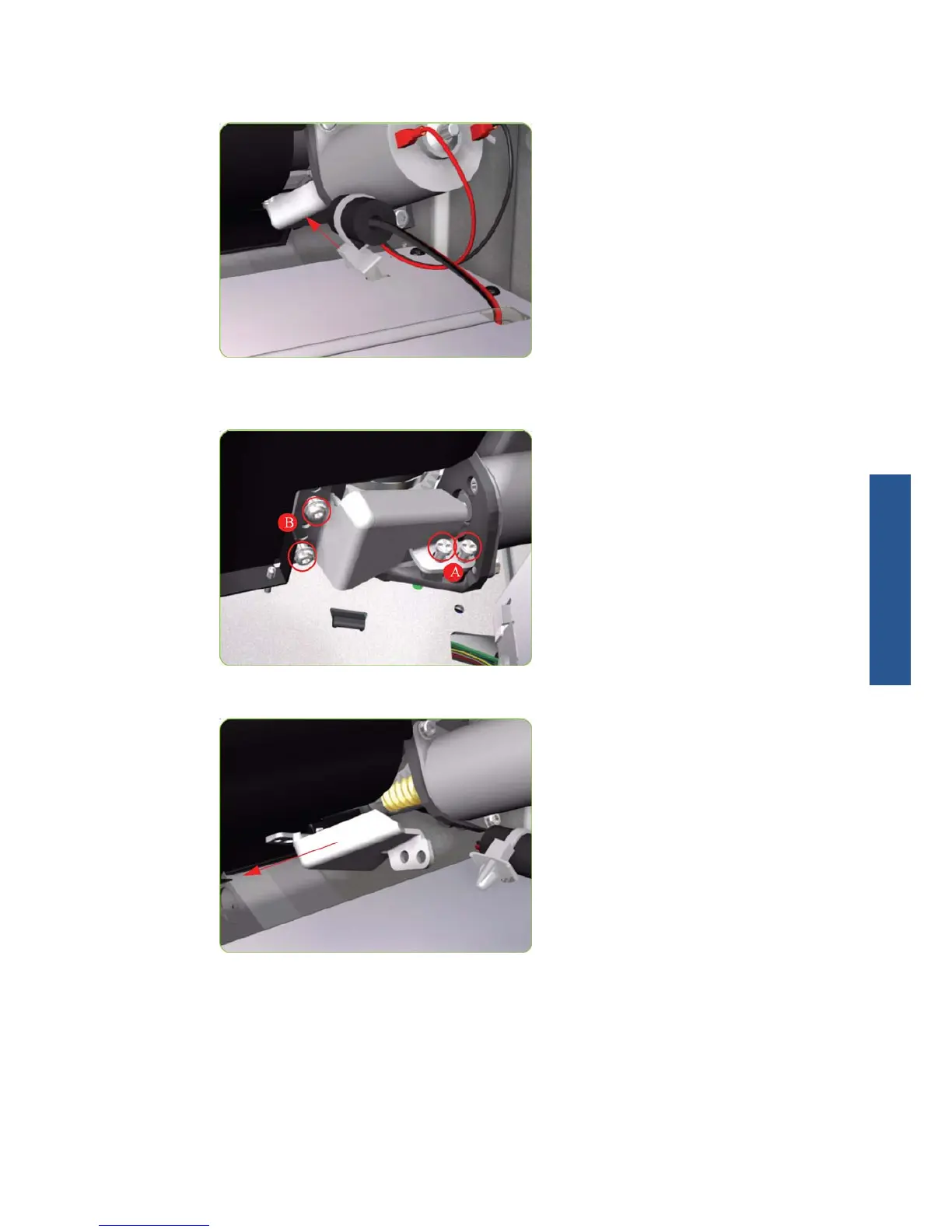

7. Detach the clamp of the ferrite core of the Media-Axis Motor cable from the printer chassis.
8. Remove the T-15 screws (Type R) identified (A) and loosen the T-15 screws (Type R) identified
(B) that secure the Media-Axis Motor.
9. Remove the Media-Axis Motor Bracket.
