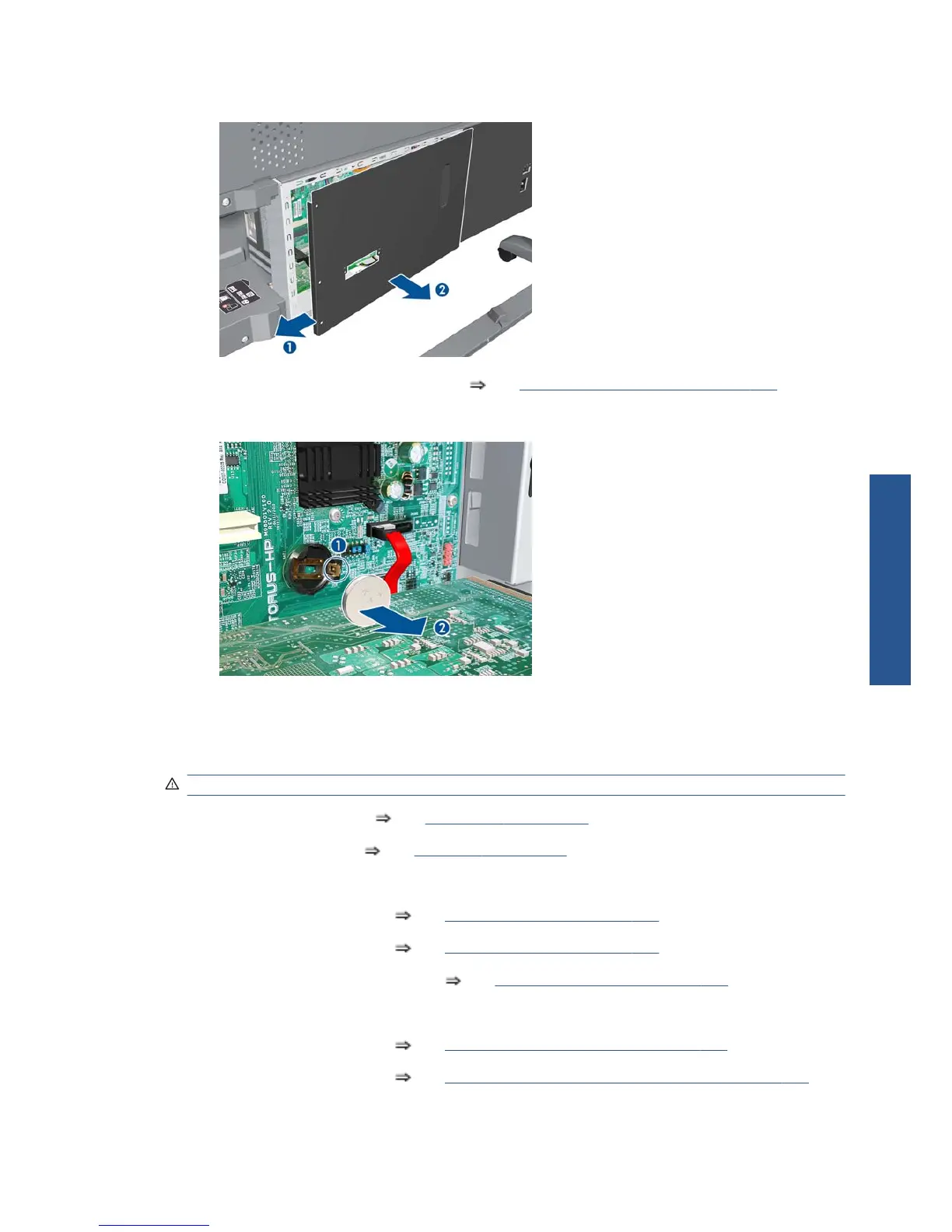

3. Remove the Formatter Cover from the printer.
4. Remove the EIO to PCA Interface Card See EIO to PCA Interface Card on page 324.
5. Push the clip down and release the battery from the Formatter.
Electronics Module
Removal
WARNING! Switch off the printer and remove the power cable.
1. Remove the Right Cover See Right Cover on page 216.
2. Remove the Left Cover
See Left Cover on page 222.
3. Remove the Rear Door:
●
For the 42-inch model
See Rear Door (42-inch) on page 235.
●
For the 60-inch model
See Rear Door (60-inch) on page 237.
4. Remove the Right Connector Cover
See Right Connector Cover on page 238.
5. Remove the Left Connector Cover:
●
For the 42-inch model
See Left Connector Cover (42-inch) on page 240.
●
For the 60-inch model
See Electronics Module Extension (60-inch only) on page 241.
ENWW
Disassembly order
351
Removal and
installation
