Left Roll-feed Module
Removal
WARNING! Switch off the printer and remove the power cable.
1. Remove the Left Cover See Left Cover on page 222.
2. Remove the Ink Supply Station
See Ink Supply Station (ISS) on page 276.
3. Remove the Input Roller
See Input Roller on page 375.
4. Remove the APS Assembly
See APS Assembly on page 283.
5. Remove the Left Spittoon
See Left Spittoon on page 289.
6. Remove the Media Spindle (if installed).

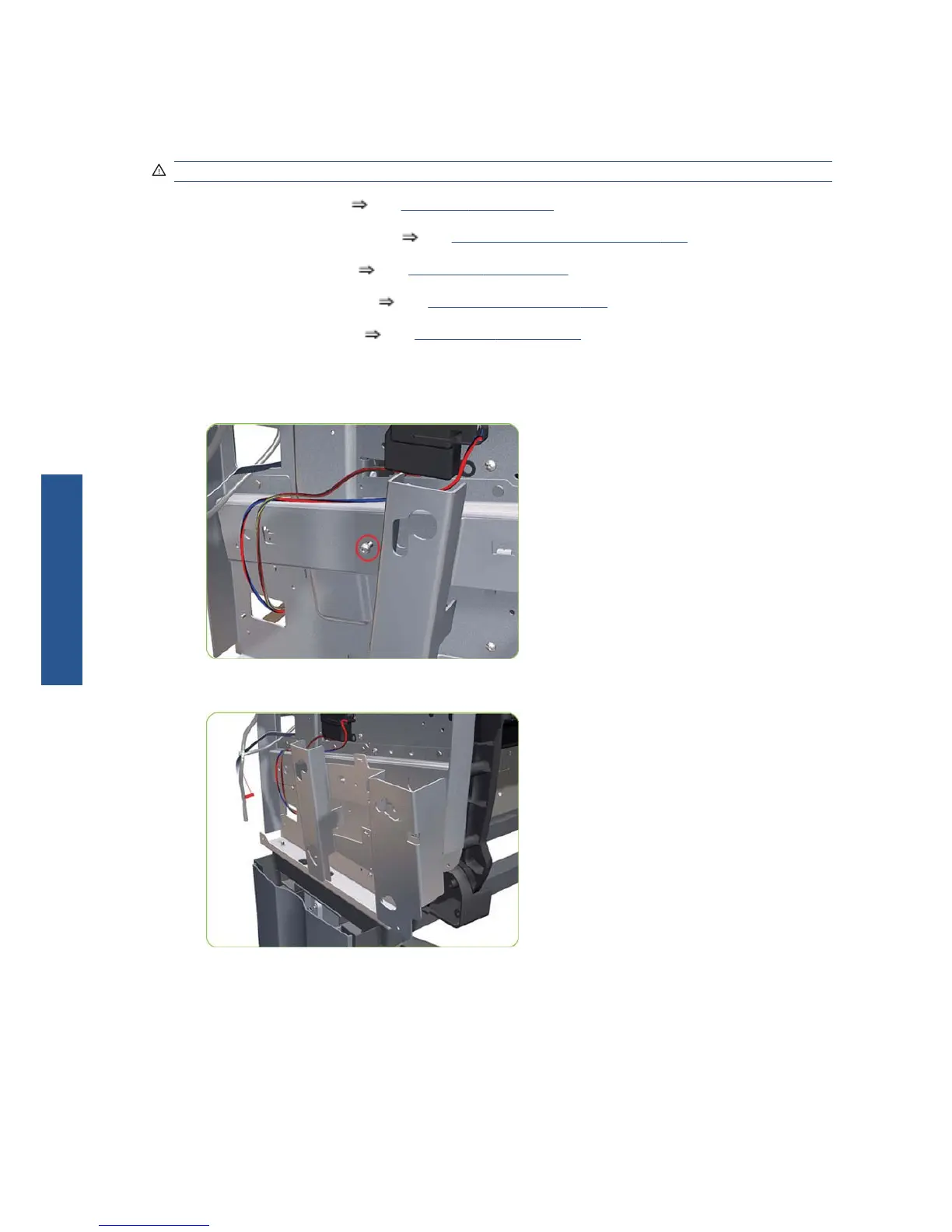

7. Remove one T-15 screw that secures the APS Mounting Plate to the printer.
8. Tilt out the top of the APS Mounting Plate support.
408 Chapter 8 Removal and installation ENWW
Removal and
installation
