HP Designjet Z6200

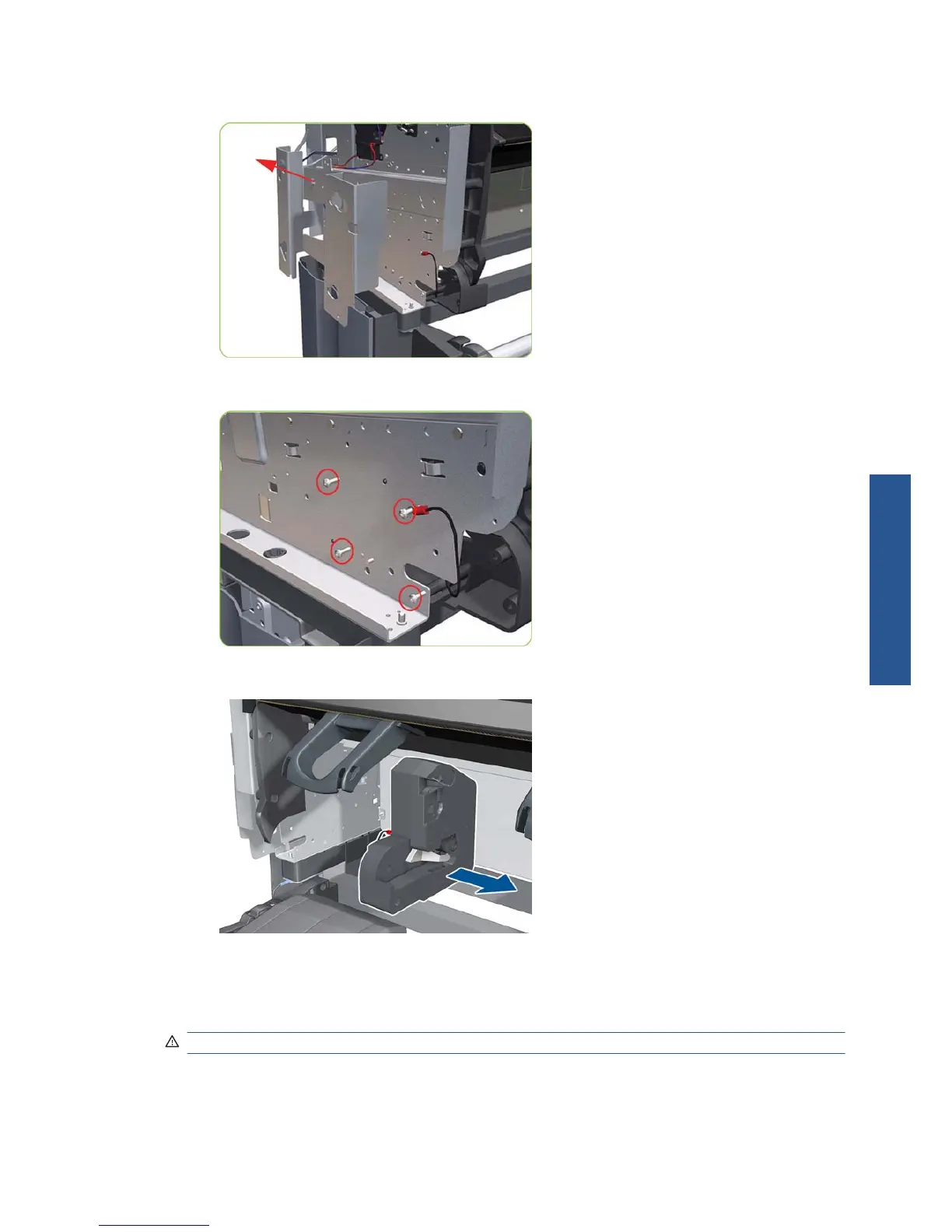

9. Remove the APS Mounting Plate support from the printer.
10. Remove four T-20 screws that secure the Left Roll-feed Module to the printer.
11. Remove the Left Roll-feed Module from the printer.
Take-Up Reel Motor
Removal
WARNING! Switch off the printer and remove the power cable.
1. Close the Paper Bin (if open).
