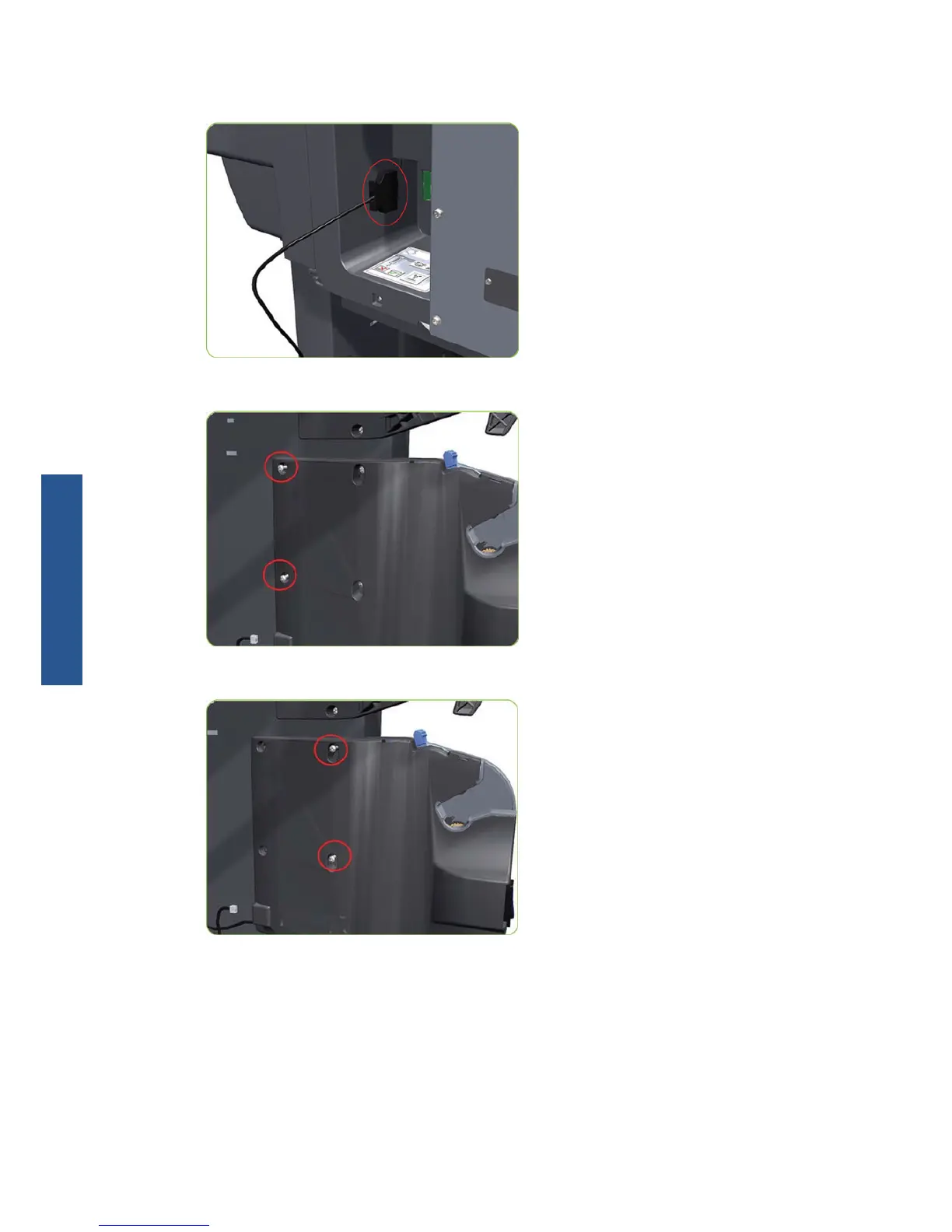

2. Disconnect the Take-Up Reel Motor from the Parallel Port on the rear of the printer.
3. Remove the two rear T-20 screws that attach the Take- Up Reel Motor to the Right Leg Assembly.
4. Loosen the two front T-20 screws that attach the Take- Up Reel Motor to the Right Leg Assembly.
