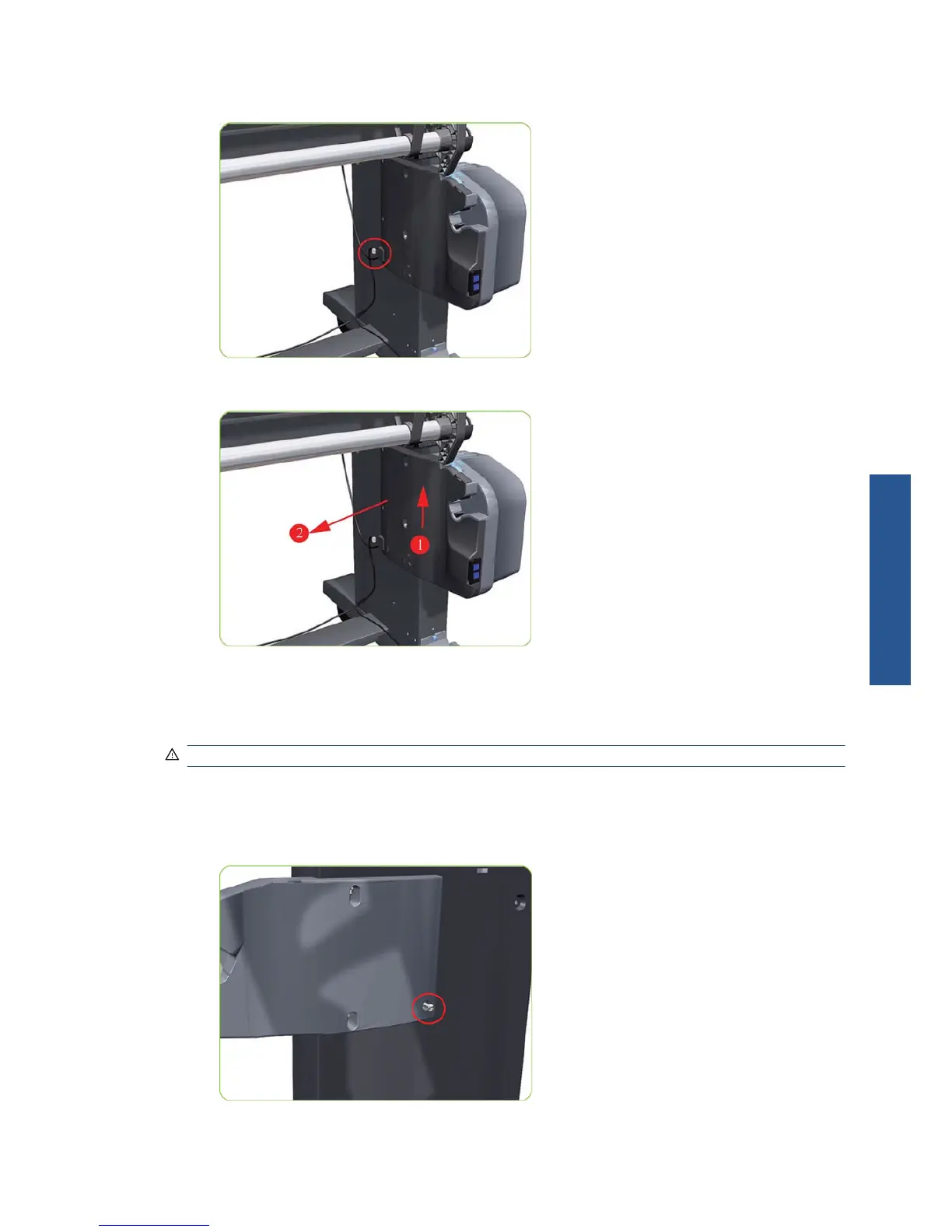

5. Disconnect the Take-Up Reel Sensors from the Take-Up Reel Motor.
6. Lift the Take-Up Reel Motor sufficiently so you can remove it from the Right Leg Assembly.
Take-Up Reel Left-Hand Module
Removal
WARNING! Switch off the printer and remove the power cable.
1. Close the Paper Bin (if open).
2. Remove one rear T-20 screws that attaches the Take-Up Reel Left-Hand Module to the Left Leg
Assembly.
ENWW
Disassembly order
411
Removal and
installation
