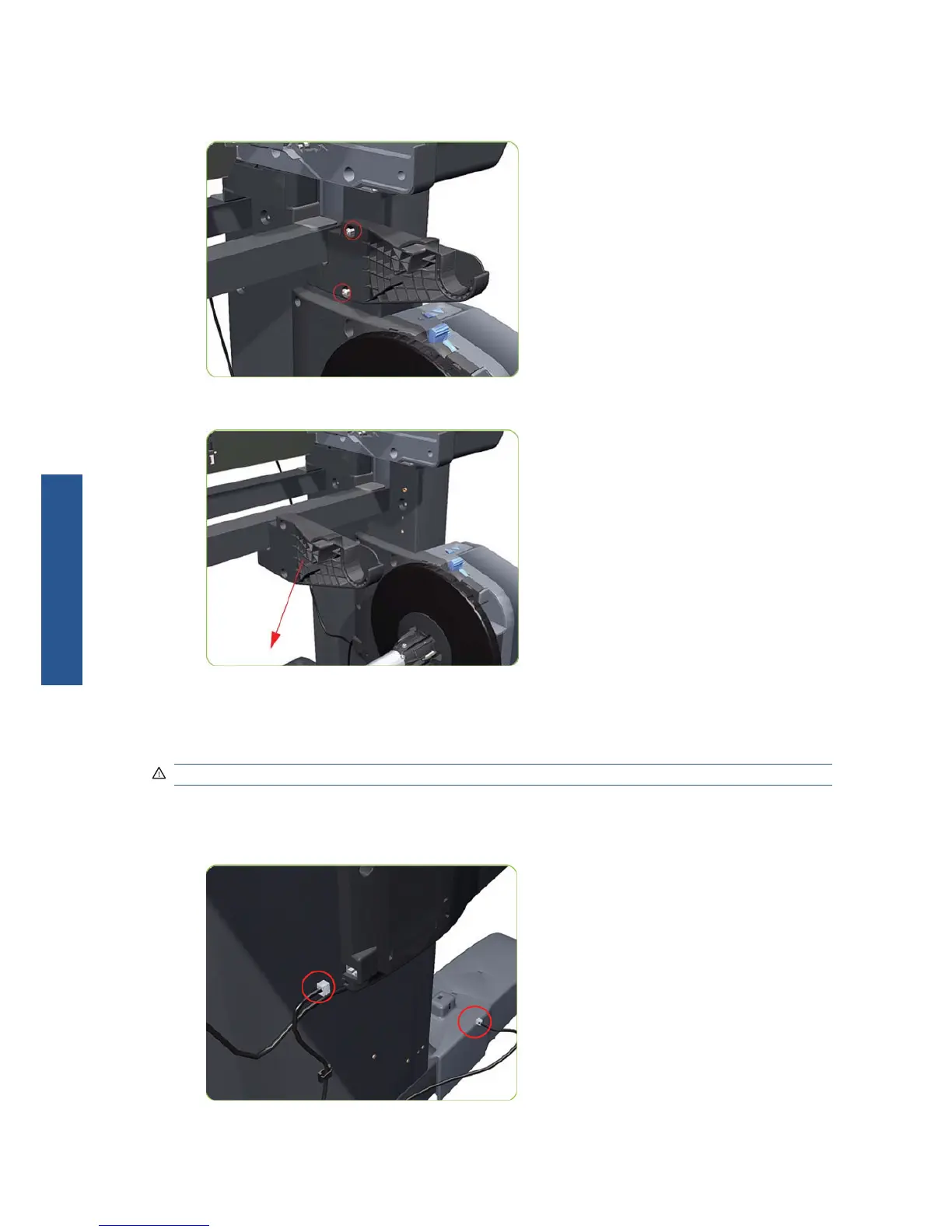

6. Remove the two T-20 screws that attach the Right-Hand Deflector Support to the Right Leg
Assembly.
7. Remove the Right-Hand Deflector Support.
Take-Up Reel Sensors
Removal
WARNING! Switch off the printer and remove the power cable.
1. Close the Paper Bin (if open).
2. Disconnect the Take-Up Reel Sensors.
414 Chapter 8 Removal and installation ENWW
