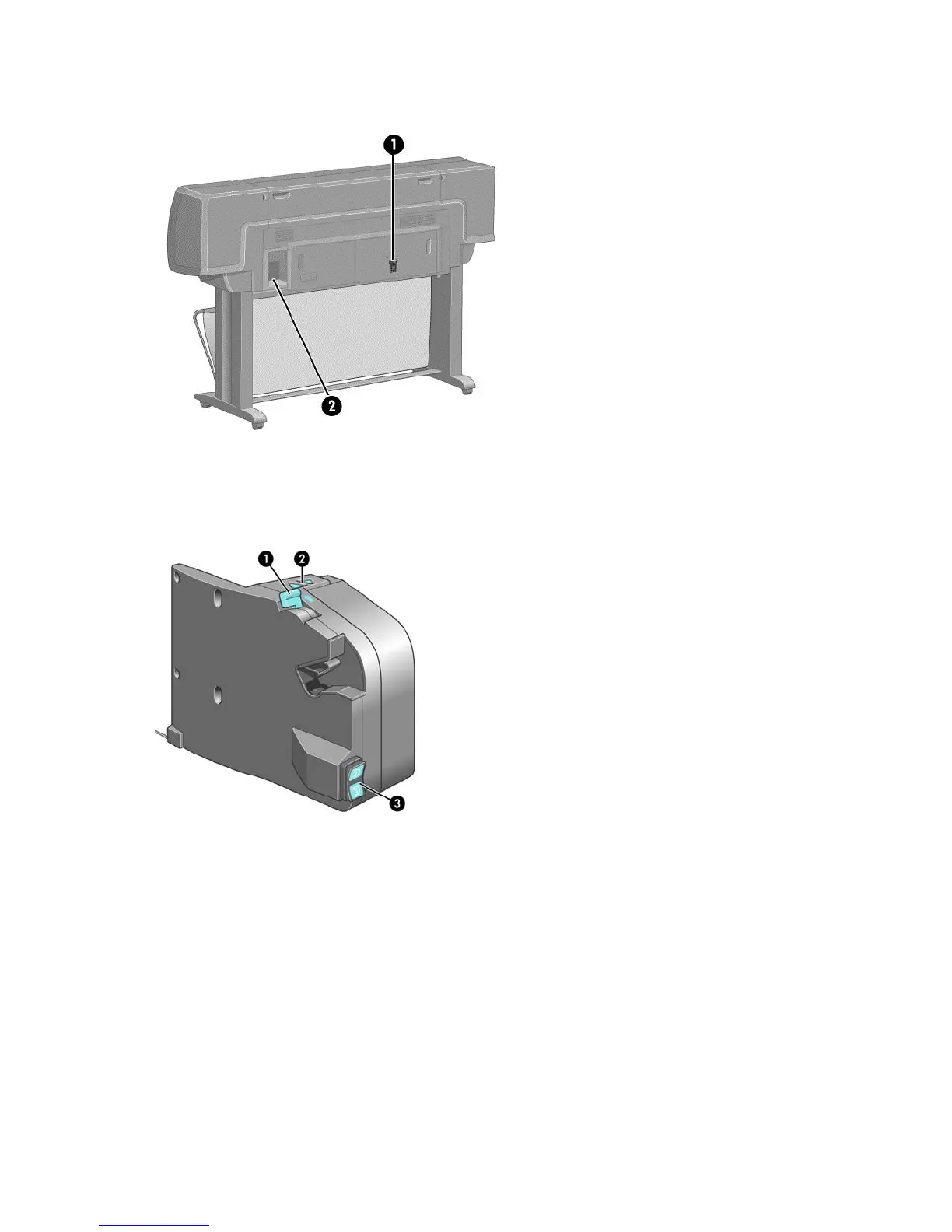

Rear view
1. Power switch and socket
2. Sockets for communication cables and optional accessories
Take-up reel motor
1. Take-up reel spindle lever
2. Manual winding buttons
3. Wind-direction switch
The front panel
Your printer's front panel is located on the front of the printer, on the right-hand side. It has the following
important functions:
●
It is used to perform certain operations, such as loading and unloading paper
●
It displays up-to-date information about the status of the printer, the ink cartridges, the printheads, the
maintenance cartridge, the paper, the print jobs, and other parts and processes
●
It gives guidance on using the printer
