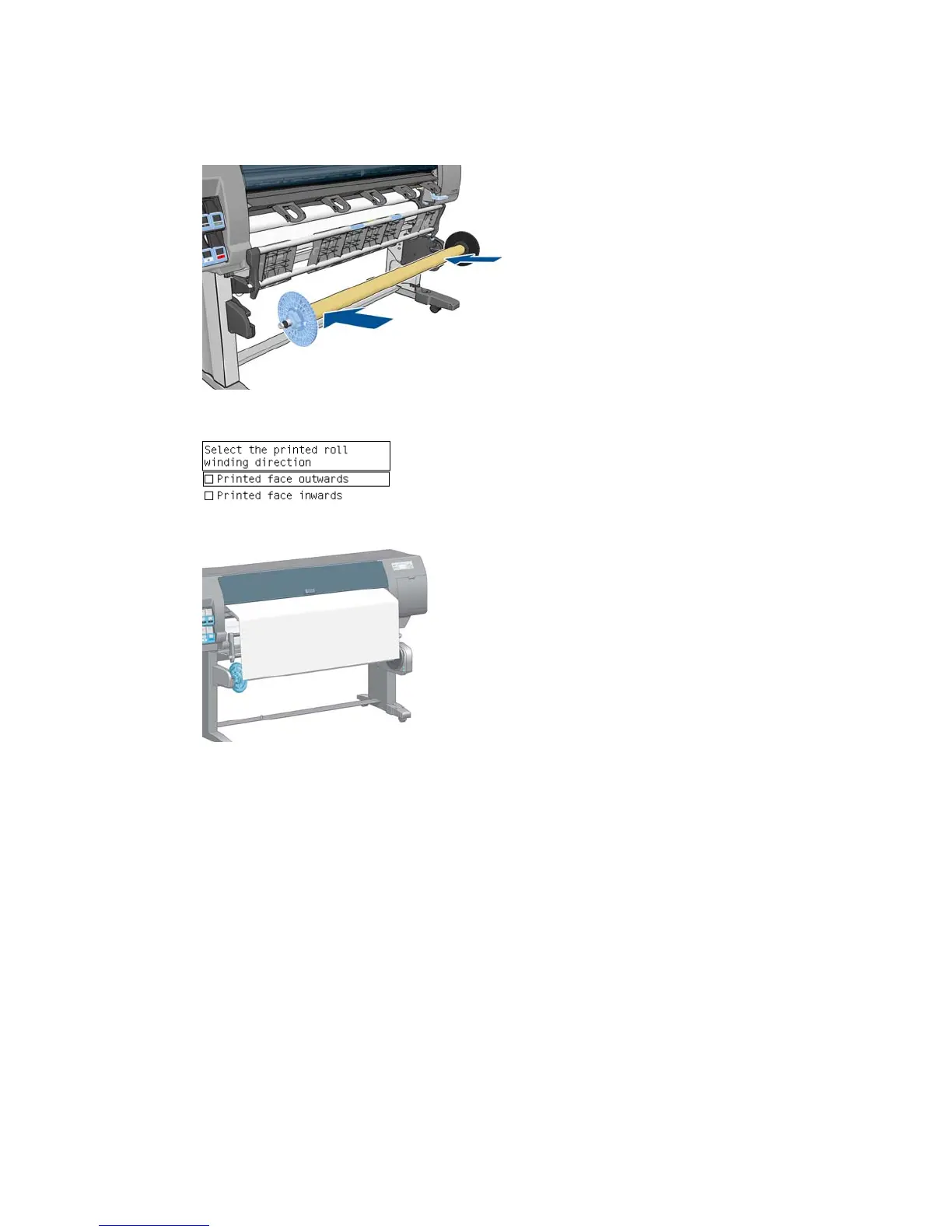

6. The front-panel display guides you through the process of loading the take-up reel spindle core onto
the take-up reel spindle. When that task is complete, load the take-up reel spindle into the printer by
pushing firmly on both ends of the spindle.
7. Press the OK key on the front panel, and then select a winding direction.
The printer advances the paper. Make sure that the paper passes in front of the loading table, as shown.
ENWW Use the take-up reel 37
