Hardware options installation 26
2.
Remove the server from the rack (on page 6).
3.
Remove the primary access panel (on page 7).
4.
Disconnect any internal cables connected to any existing expansion boards.
5.
Remove the PCI riser board assembly (on page 7).
6.

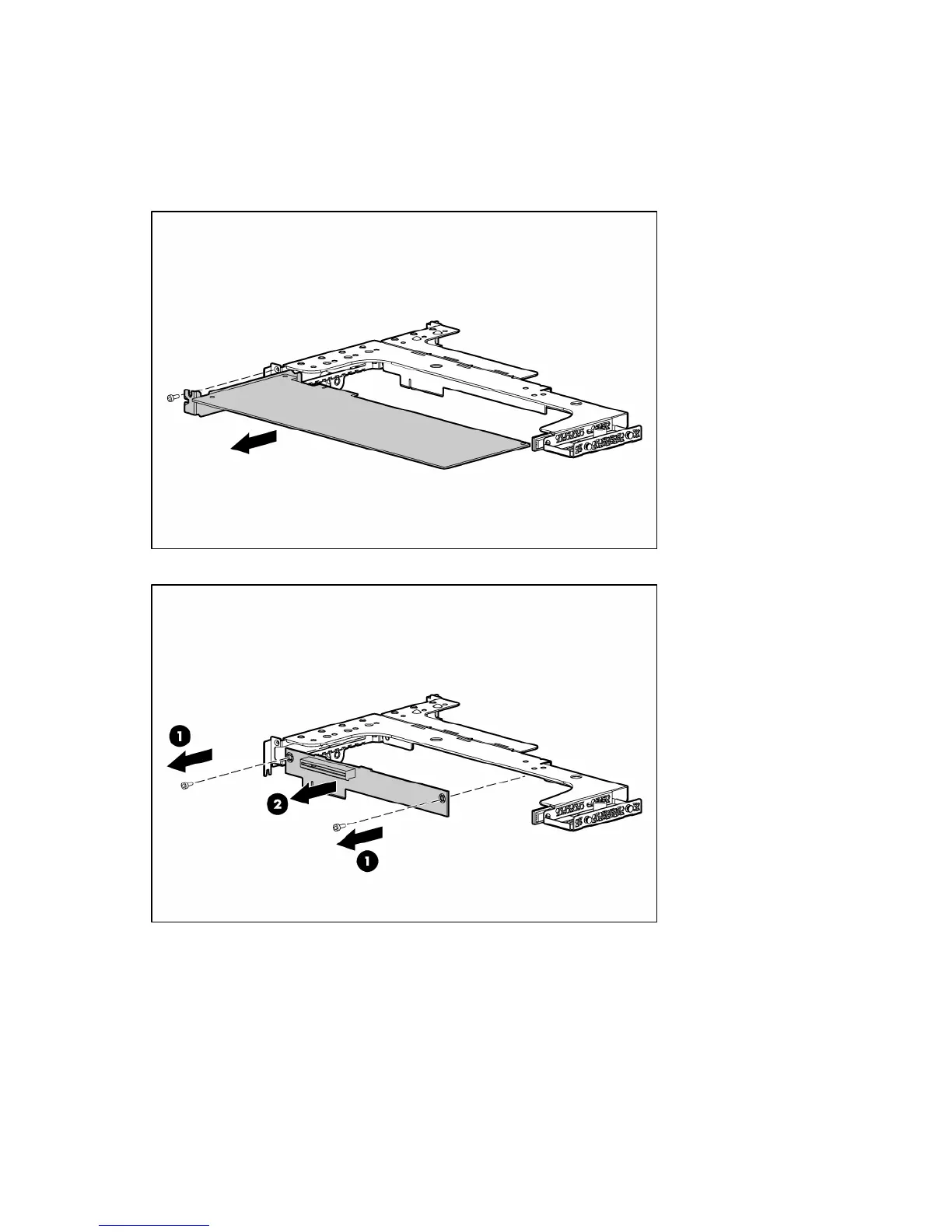

Remove any installed expansion boards.
7.
Remove the PCIe riser board from the assembly.
