HP DL360 G7 User Manual

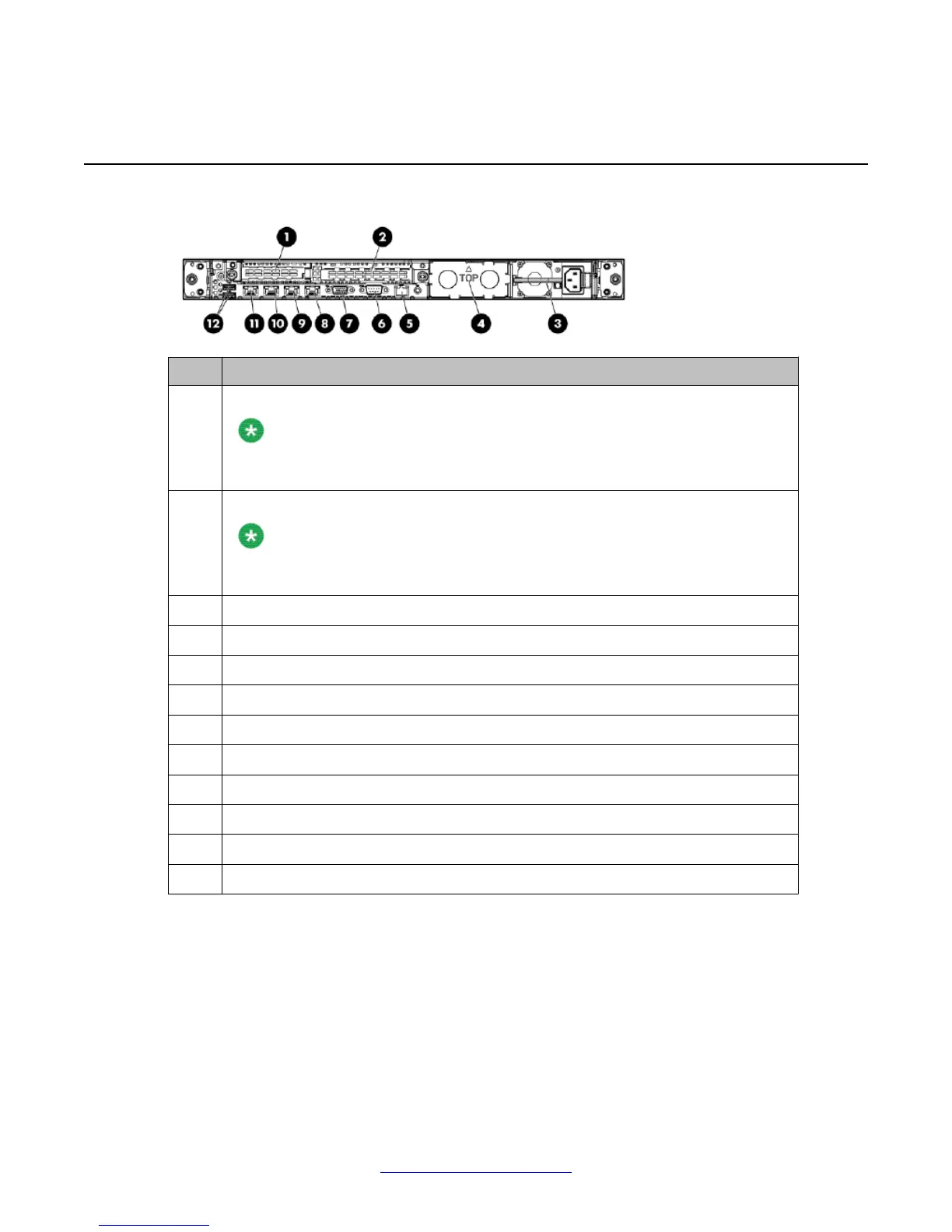

Back view of HP DL360 G7 Server
No. Description
1 Slot 1 PCIe2 x8 (8, 4, 2, 1)
Note:
Servers might ship with a PCI card installed, depending upon product
requirements.
2 Slot 2 PCIe2 x16 (16, 8, 4, 2, 1), 75W +EXT 75W*
Note:
Servers might ship with a PCI card installed, depending upon product
requirements.
3 Power supply bay 1 (populated)
4 Power supply bay 2
5 iLO 3 connector
6 Serial connector
7 Video connector
8 NIC 4 connector
9 NIC 3 connector
10 NIC 2 connector
11 NIC 1 connector
12 USB connectors (2)
*This expansion slot provides 75 W of power to an adapter, with an additional 75 W of power
supplied by external power.
Installing the HP ProLiant DL360 G7 Server
10 Installing the HP DL360 G7 Server November 2010
Comments? infodev@avaya.com

HP DL360 G7 Specifications

General

Processor	Intel Xeon 5600 series
Processor Sockets	2
Form Factor	1U Rack
Memory Slots	18 DIMM slots
Storage	Up to 8 SFF SAS/SATA/SSD or 4 LFF SAS/SATA
RAID Controller	HP Smart Array P410i
Power Supply	460W, 750W, or 1200W hot-plug power supplies, redundant options available
